The Panasonic Lumix DC-S1R II makes some radical changes from its predecessor both in terms of features and size to place it more firmly in the true-hybrid still/video camera space. With a native 8.1K 44MP sensor, the S1RII can capture both high resolution stills as well as 30p 8K video all with a smaller body size and a more hybrid-friendly control arrangement.

Technical Specifications

split

The Nauticam NA-S1RII Underwater Housing

The Panasonic S1R II seems more of a redesign than an evolution, both in terms of capabilities as well as form factor.  The new S1R II is built around a 44MP 8.1K sensor that allows for both high resolution stills capture as well as 8K video at up to 30p with low rolling shutter effect.  The S1R II can also record ProRes RAW or 422 at selected resolutions and frame rates.  Promising improved autofocus, more in-line with its peers, the S1RII features phase-detection and enhanced subject tracking.

In addition to an overall smaller footprint, the S1R II also has relocated 'Movie" mode from the exposure mode dial to a dedicated switch below the drive mode dial.  This frees up the exposure dial to have 5 custom mode positions which have discrete settings for stills and video mode.

In addition to the high-resolution video capture specs, the S1R II also features Panasonic's dual-gain ISO.  A new Dynamic Range Expansion mode can be enabled when shooting in V-Log to gain an additional stop of highlight information.The S1R II also adds a false-color overlay of pixel brightness to help both still and video shooters prevent clipping.  Support for real-time LUTs and Open Gate Capture show the S1R II is really a full-featured hybrid camera.

The Nauticam NA-S1RII Underwater Housing

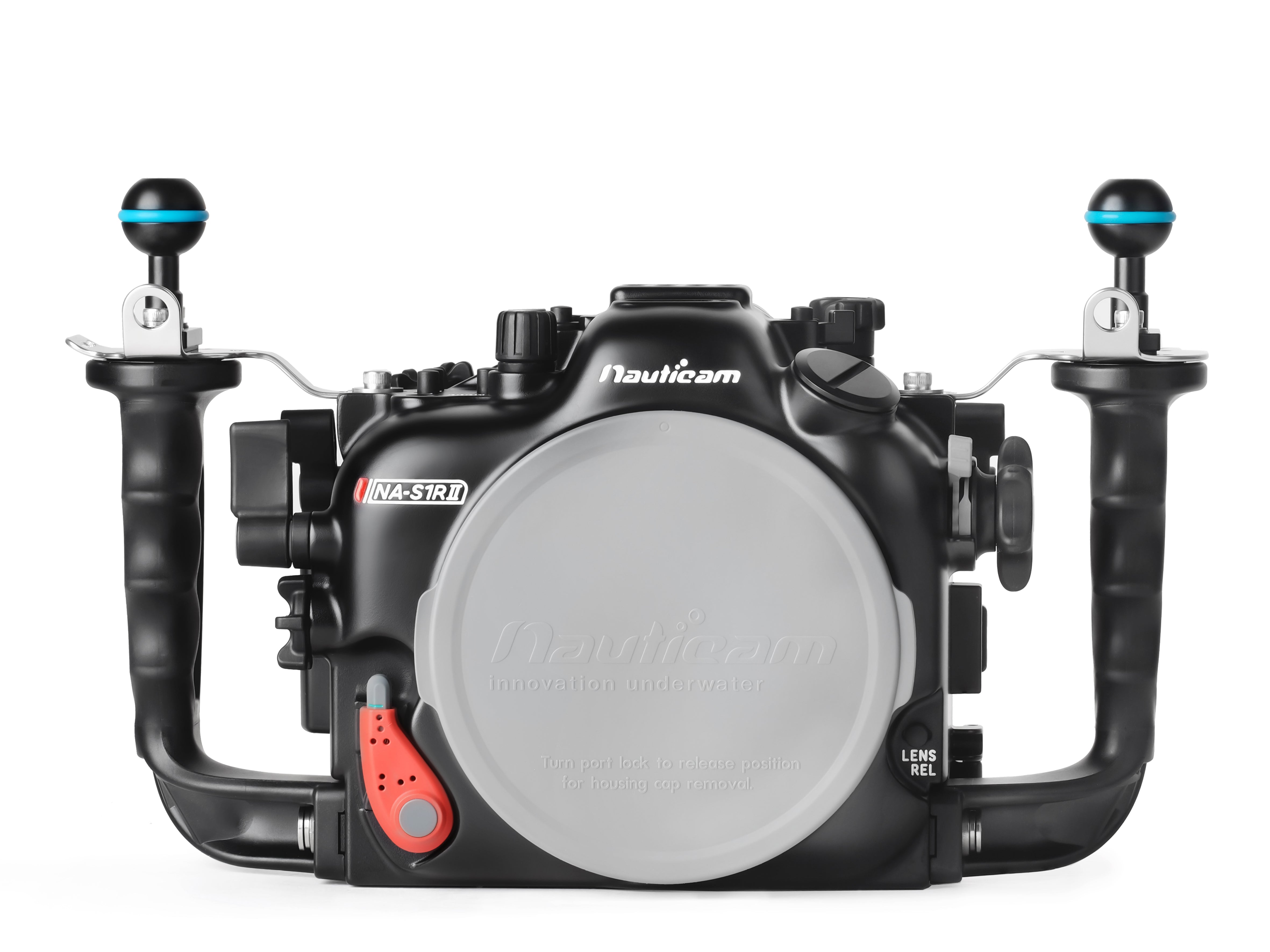

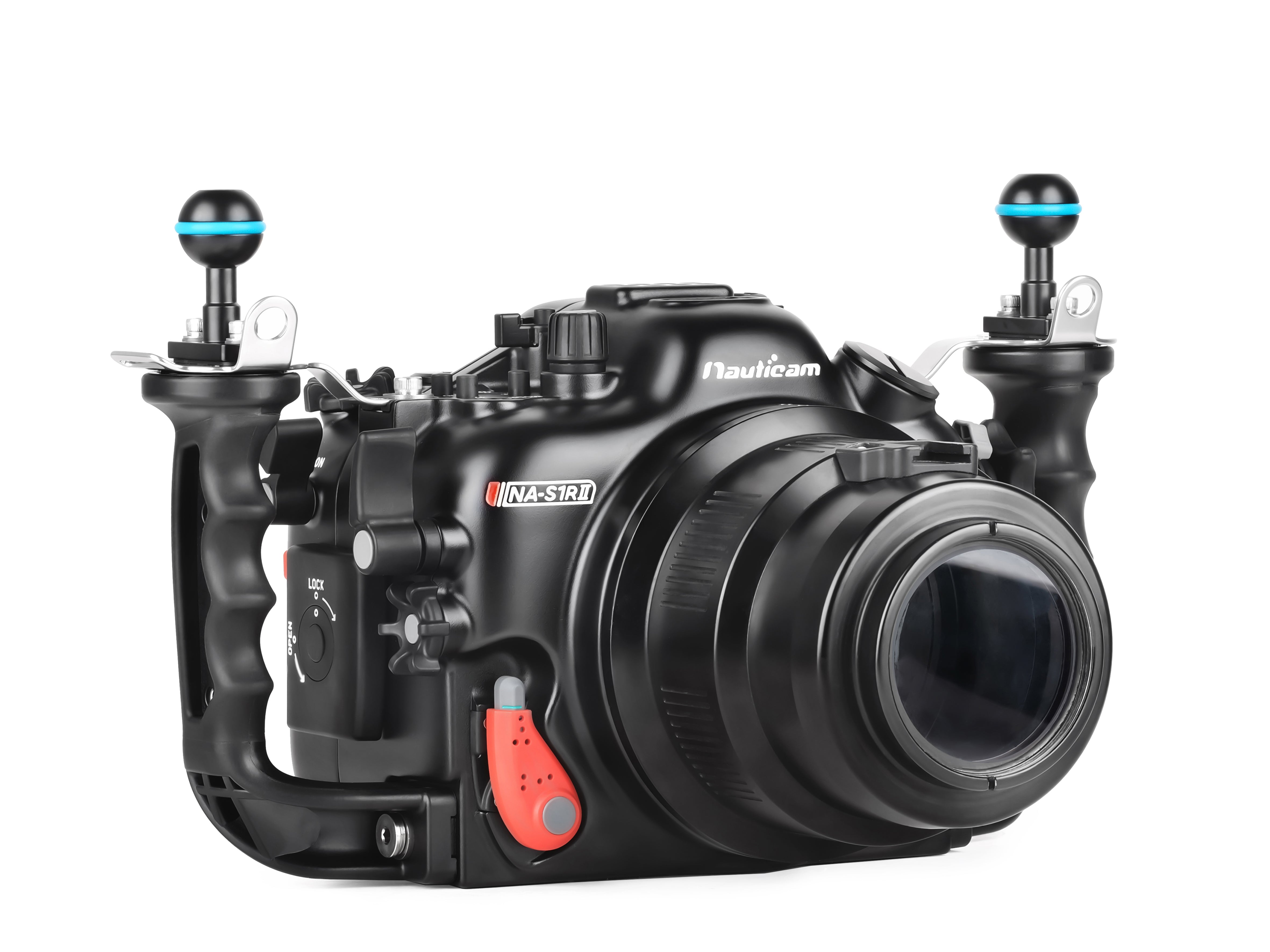

The Nauticam NA-S1RII is a professional aluminum underwater housing that delivers fast and intuitive access to all the essential controls of the Panasonic S1R II camera underwater.  Pairing the NA-S1RII with Nauticam's extensive line of Water Contact Optics and accessories further enhances the camera's already impressive still and video capabilities.

Premium Professional Optics

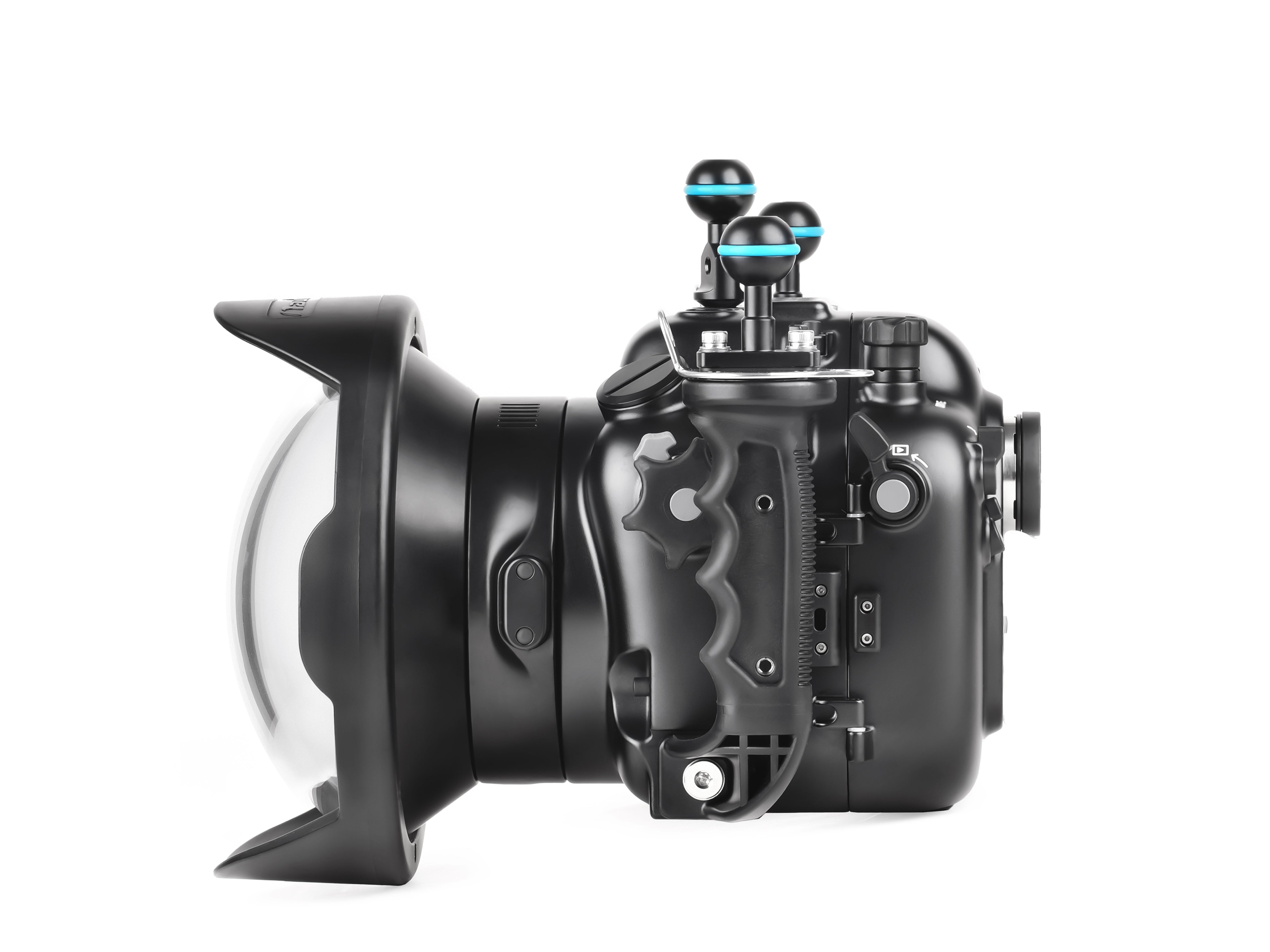

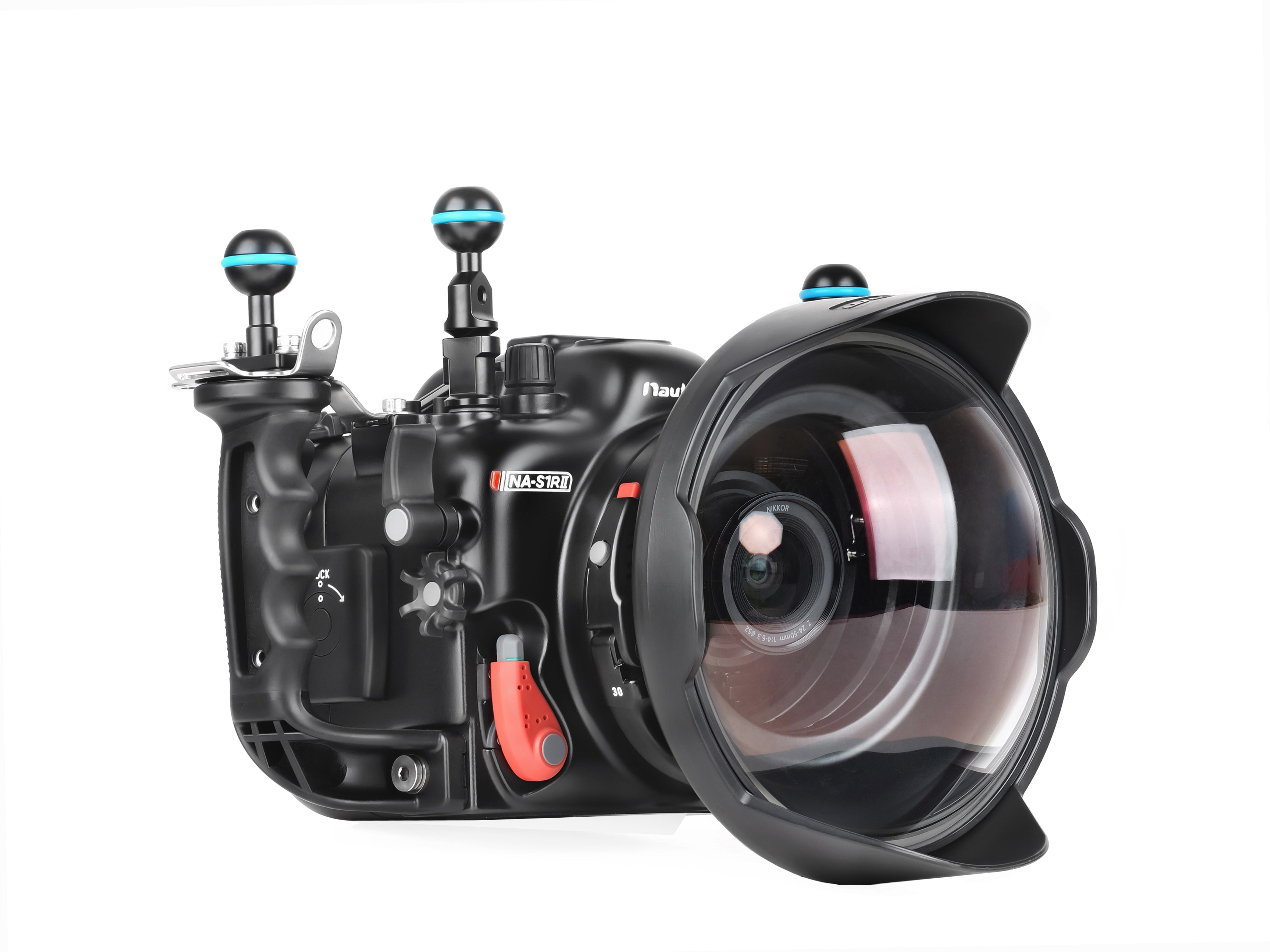

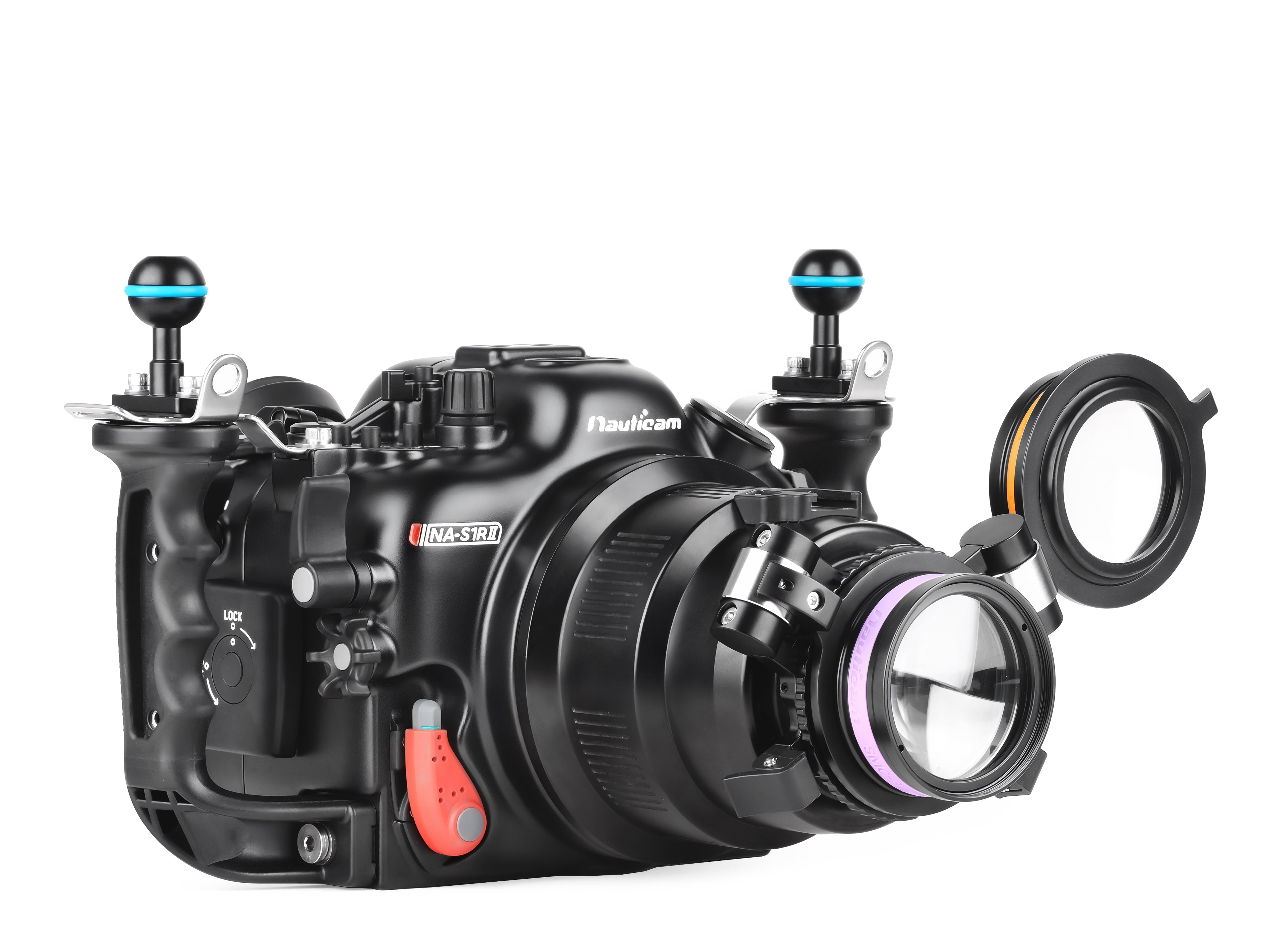

As with the NA-S1R, the NA-S1RII is built around the N120 port system and allows for those moving from the NA-S1R to carry over their port and lens configurations unchanged.  This large port opening also allows for a wide range of lenses to be used as well as extensive integration with Nauticam's Water Contact Optics that offer the best possible underwater image quality.

Mission Control

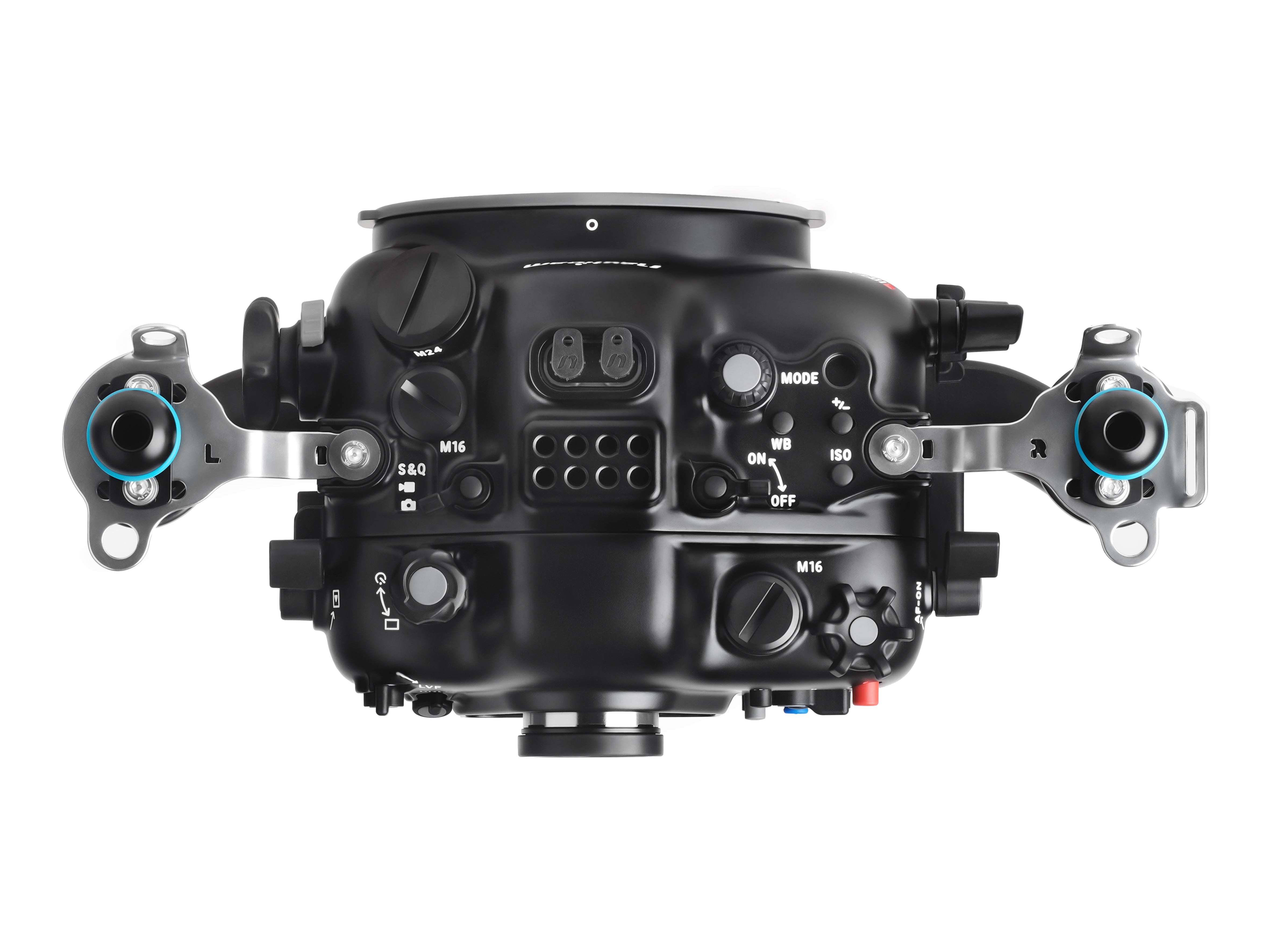

The NA-S1RII allows for efficient camera control underwater with most essential functions placed within easy reach of the ergonomic handles.  The S1R II moves the video/still mode selection to a dedicated switch which is now easily accessed with a lever located atop the NA-S1RII allowing for rapid switching underwater.

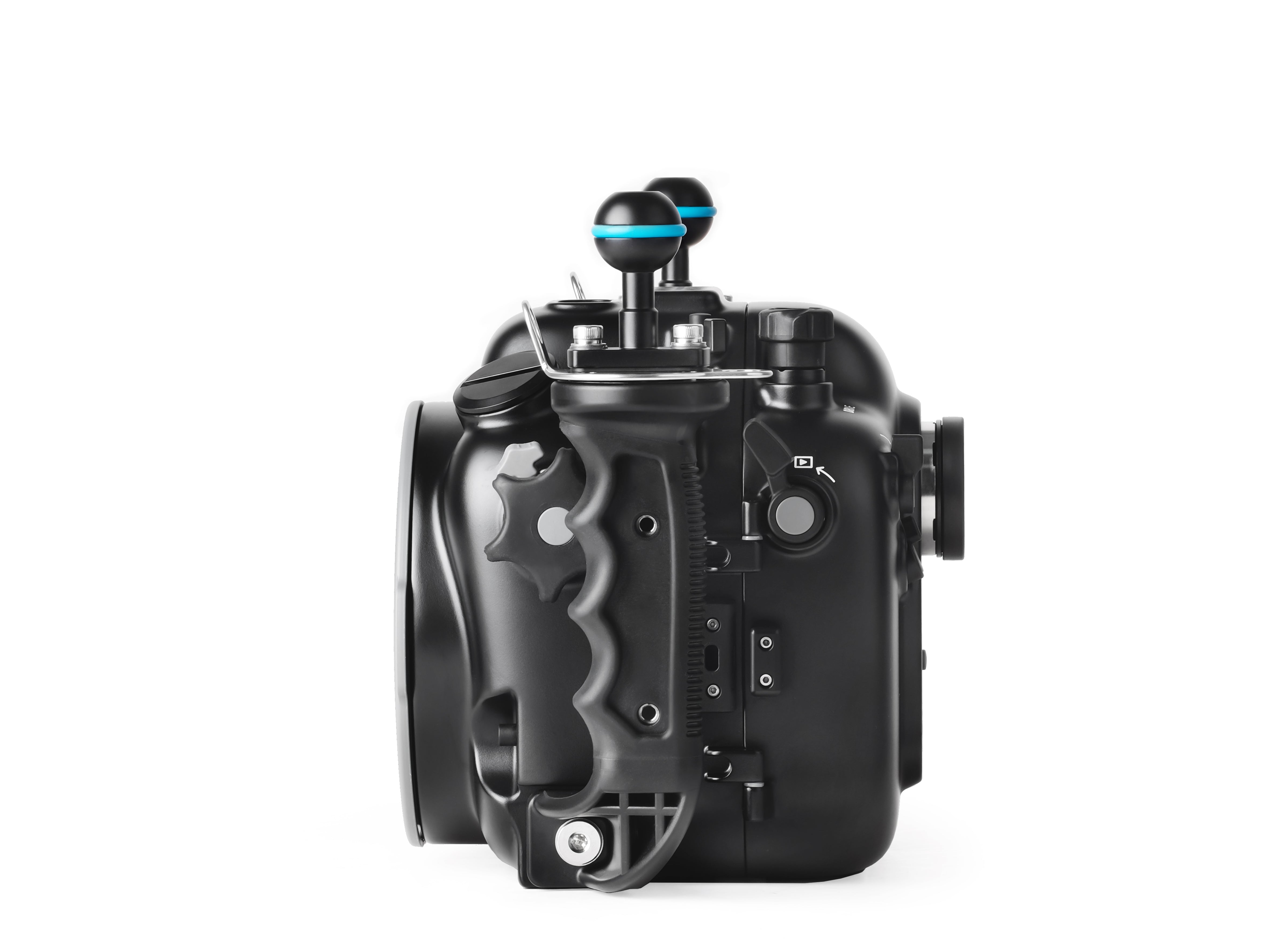

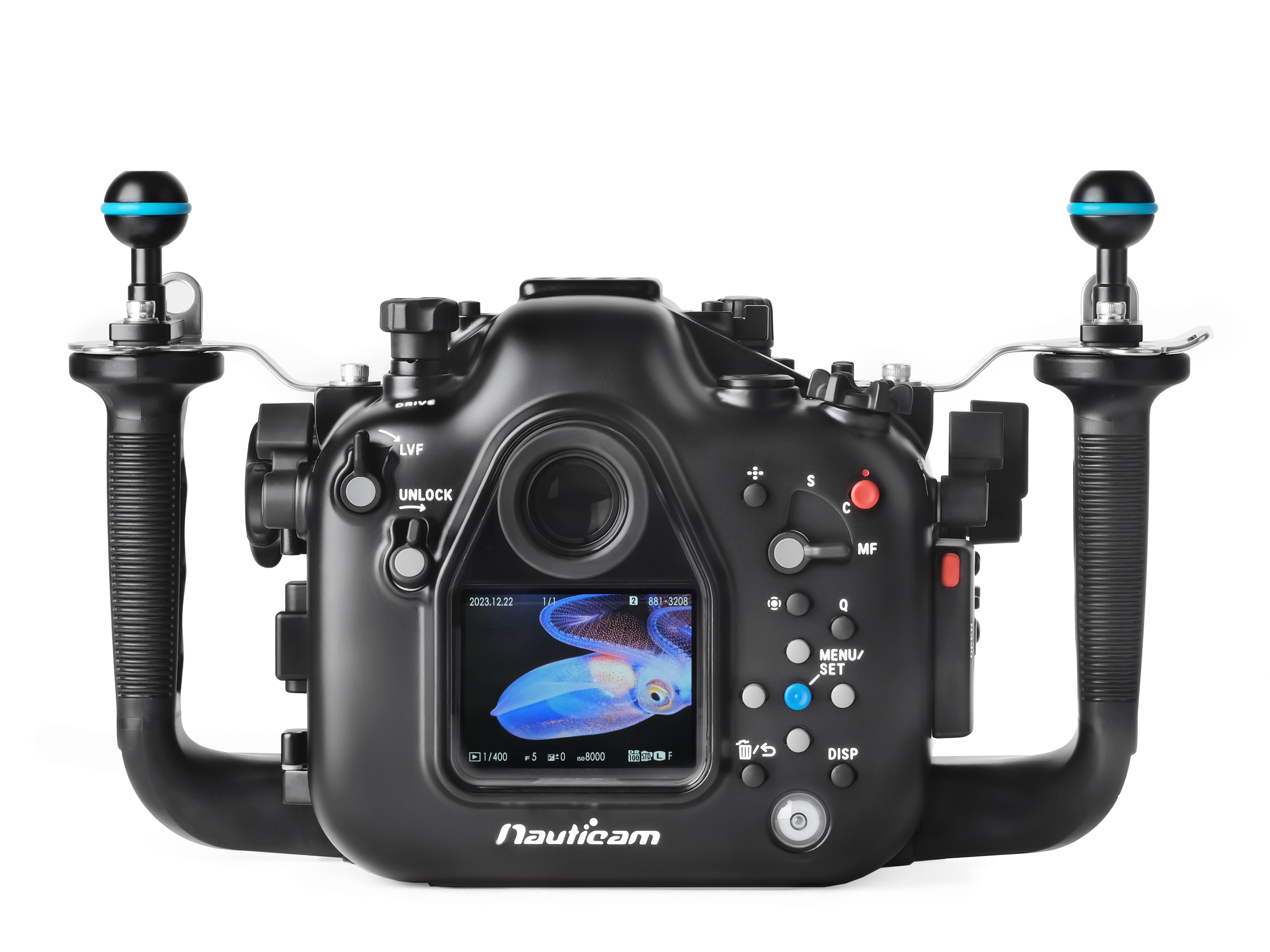

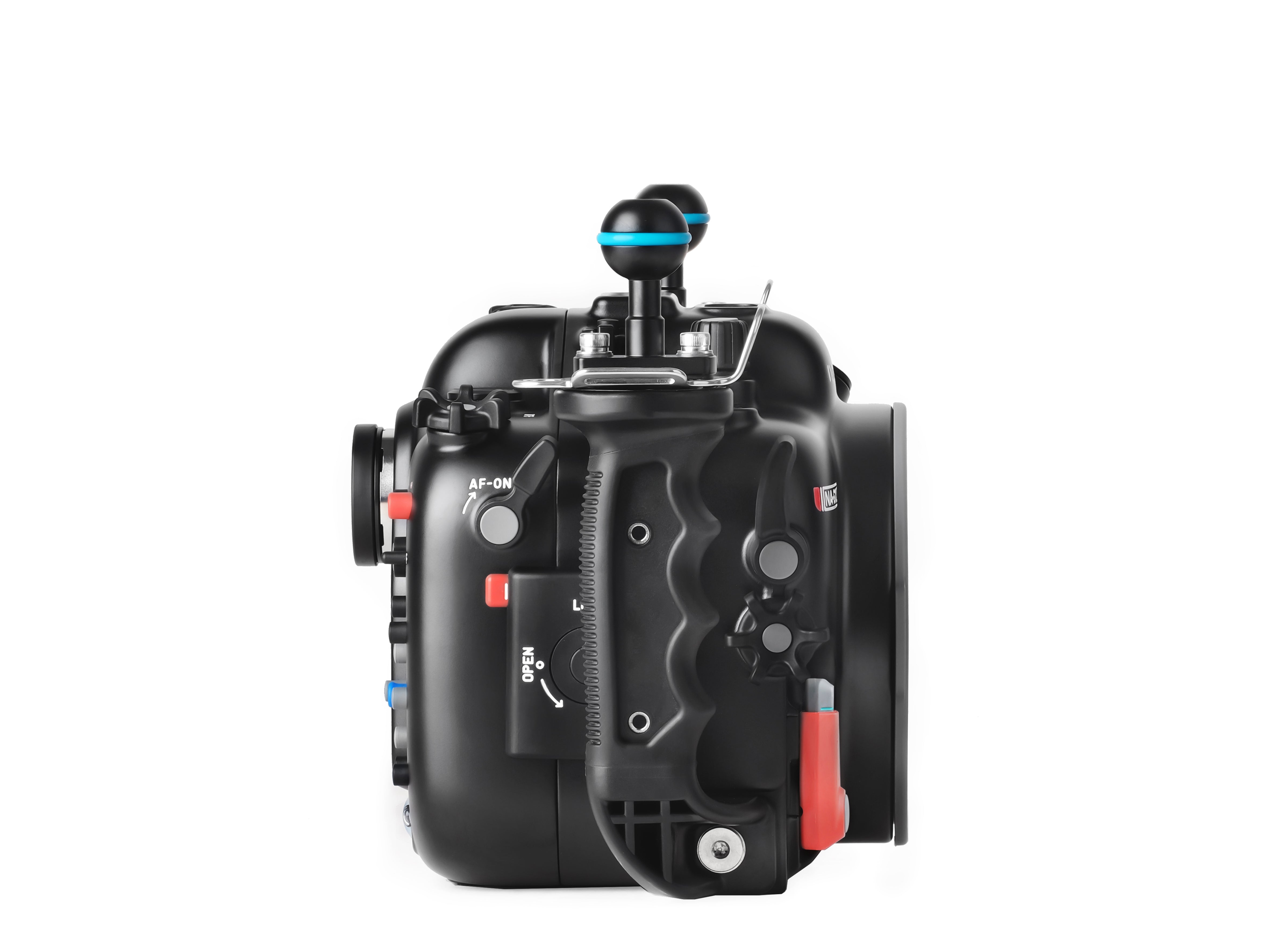

Thumb levers near the left and right side handles actuate the image review and AF-ON buttons while levers for Af-mode and switching between the EVF and LCD are also within easy reach.

HDMI Output

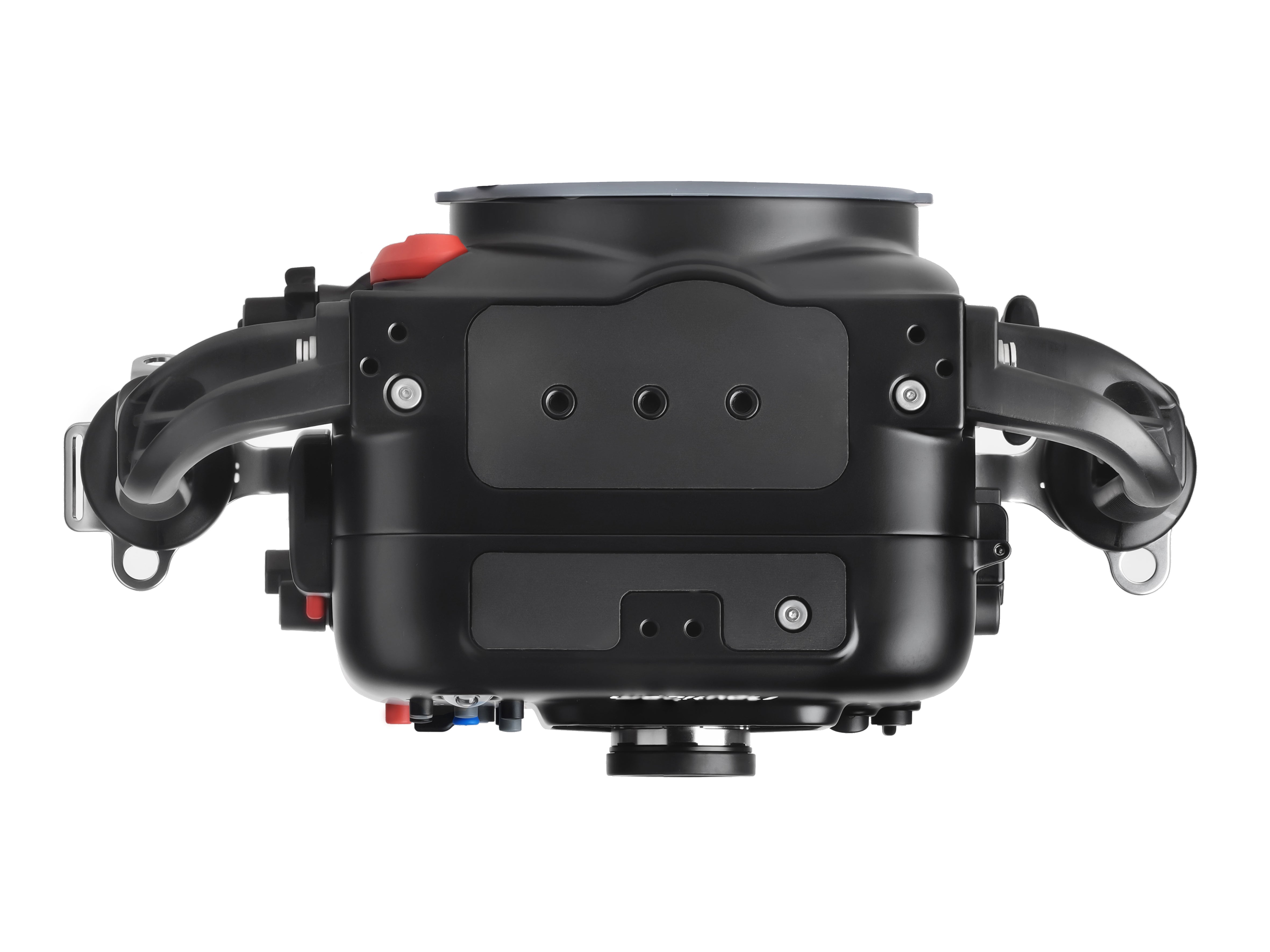

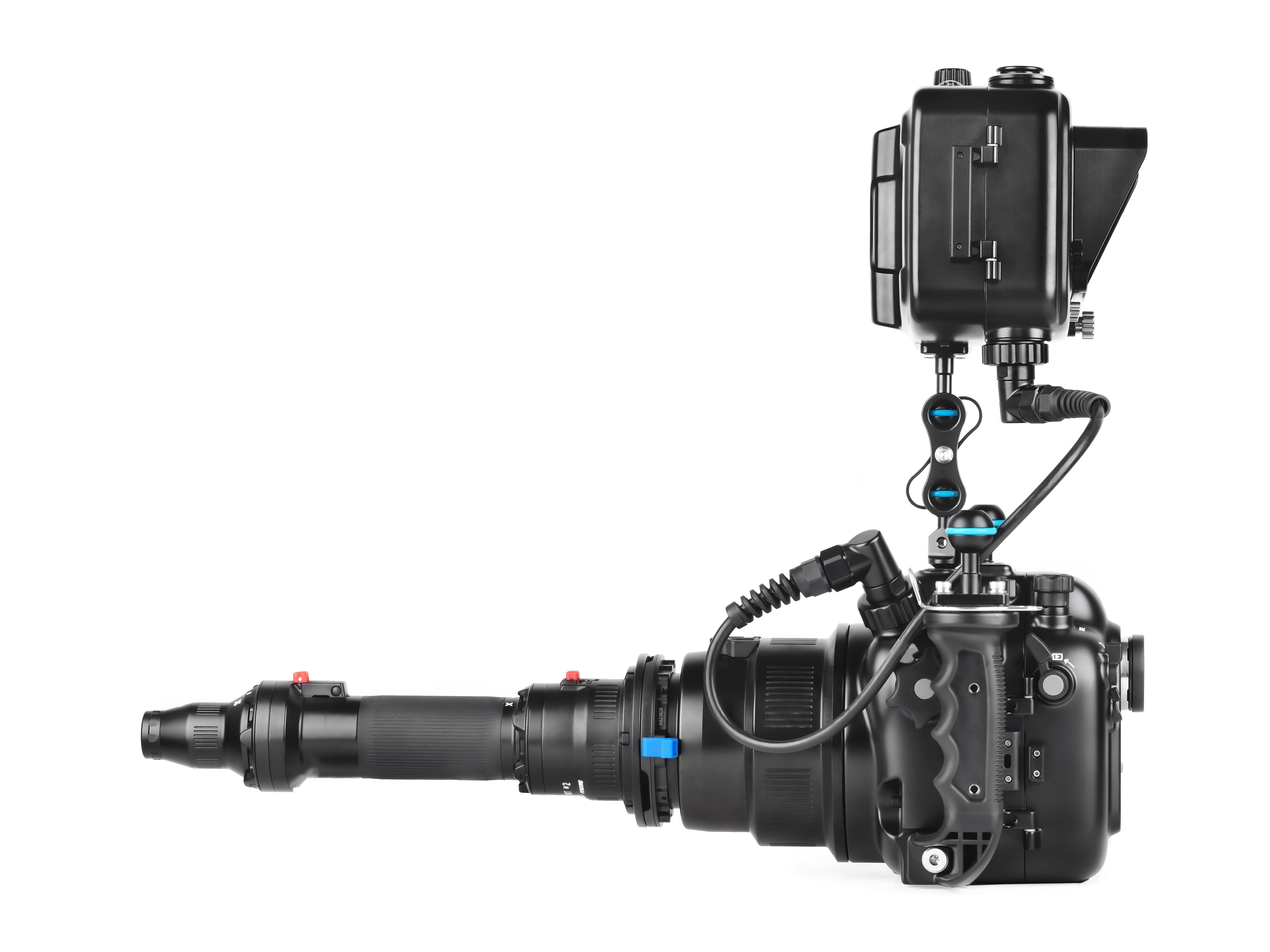

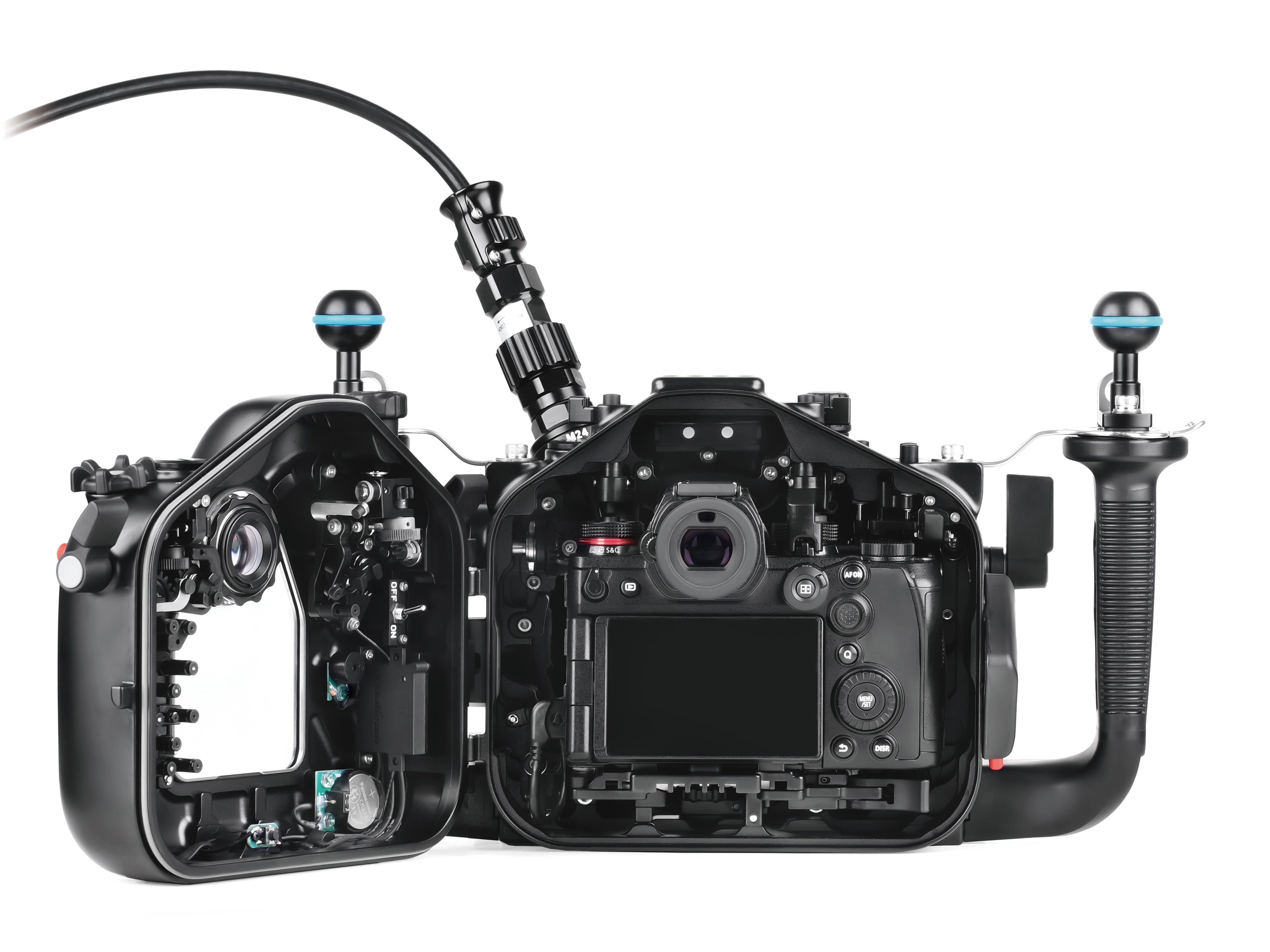

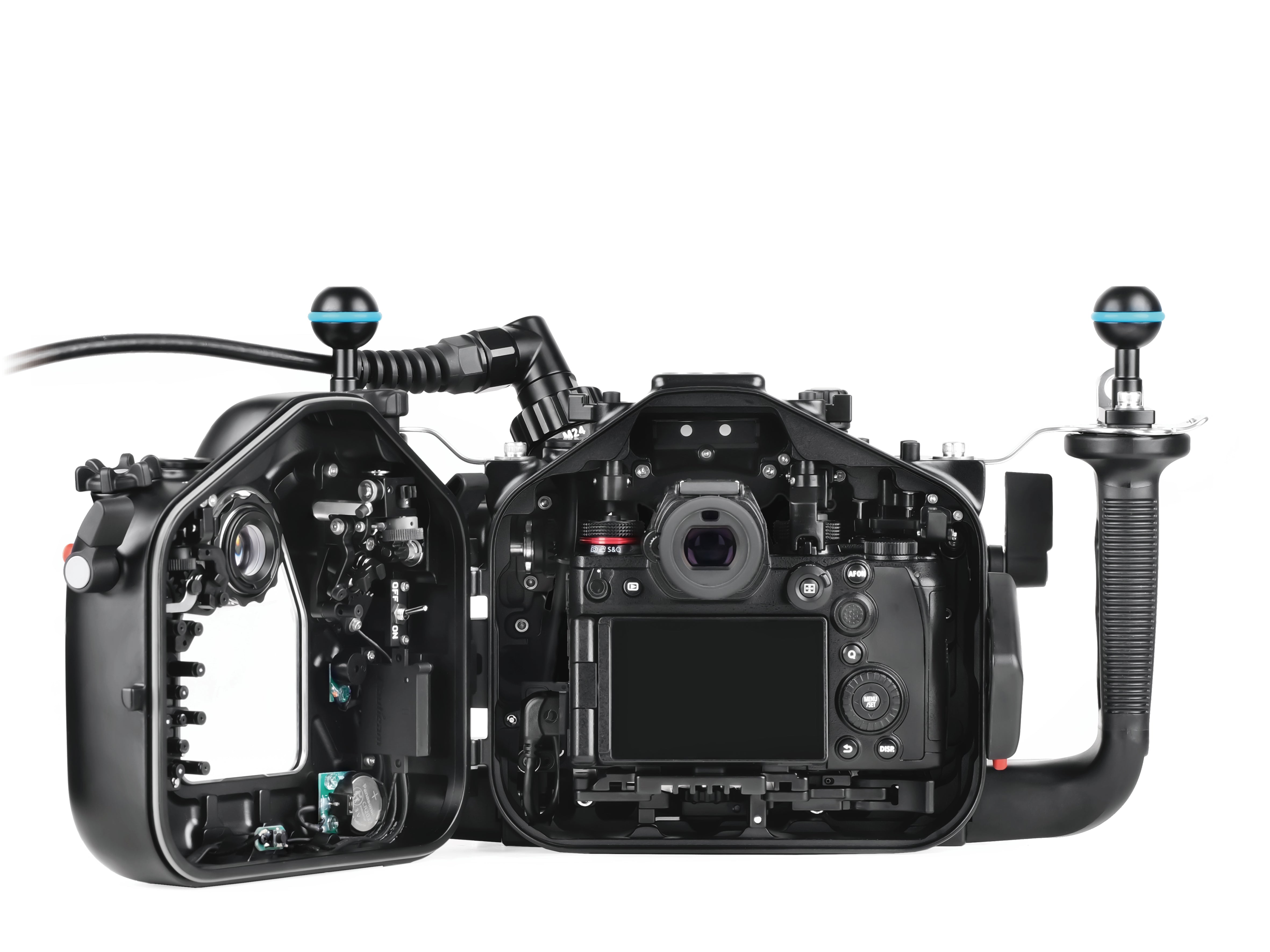

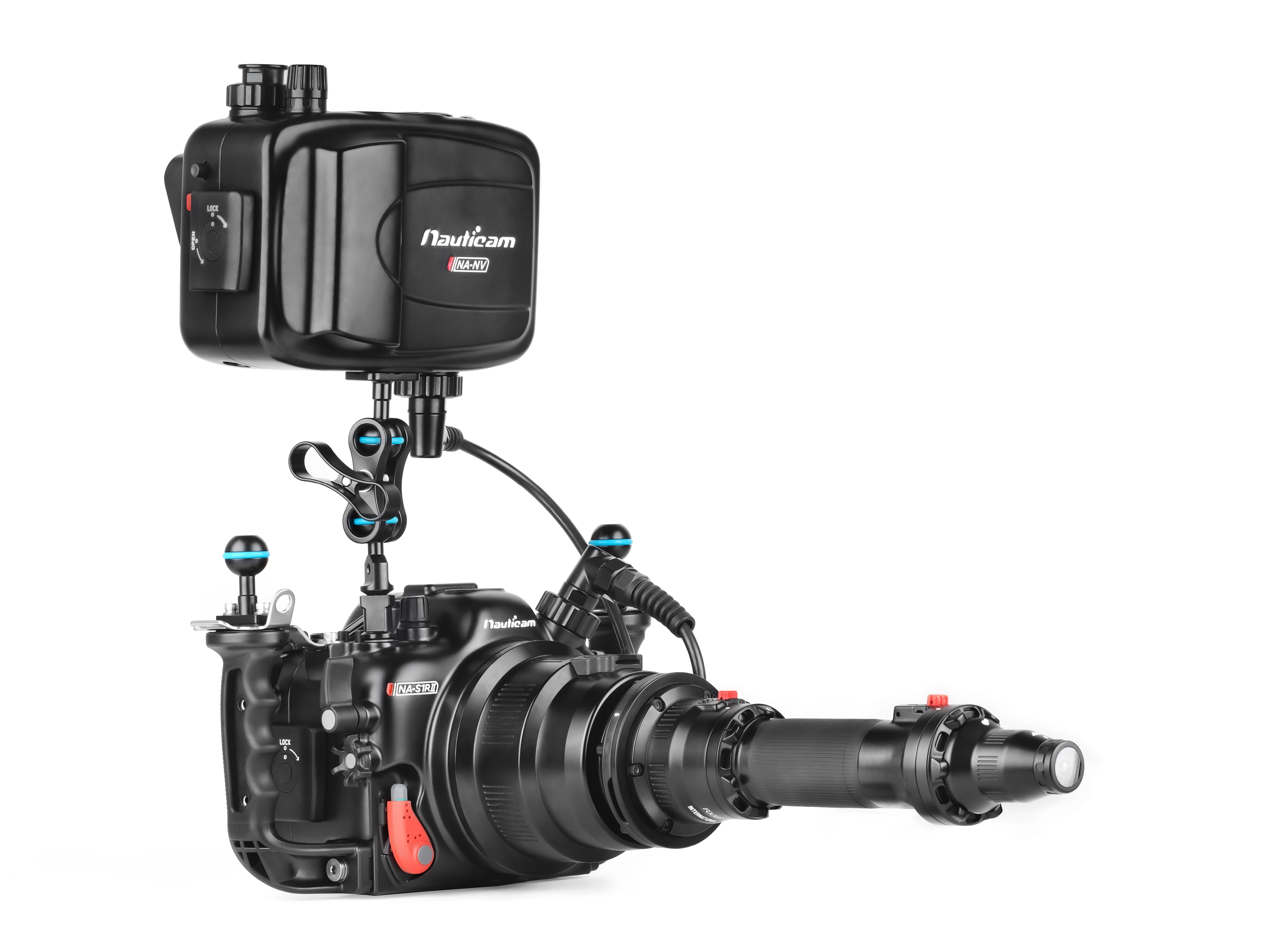

The NA-S1RII is equipped with the large M24 bulkhead that allows for the use of Nauticam's HDMI system to attached optional external monitors or recorders.  The 8 1/4"-20 holes atop the housing provide a solid base for mounting these or other larger accessories.

Flash Triggering

For rapid-fire manual flash triggering, the NA-S1RII is compatible with the Mini Flash Trigger (26305) which uses small LED units to trigger external flashes via Nauticam Universal Fiber Optic Cables (26216).

Vacuum Check and Leak Detection System

The Nauticam vacuum check and leak detection electronics are shipped with the NA-S1RII as standard equipment. Combined with an optional accessory vacuum valve (PN 25625) this monitoring system provides constant updates on the water tight and safe-to-dive status of the housing. A simple color coded LED lighting system lets the user know that the vacuum is solid, or that the housing is losing vacuum. Leak detection is built into the same circuit, so if there is water intrusion, an audible and visual indication will occur.

The Nauticam system is temperature compensated, eliminating false alarms caused by a change in outside temperature, or from a camera heating up on an action packed dive.

resources

Instruction Manual

What's in the box

• NA-S1RII Housing
• 90137 Spare main housing o-ring
• 2x Plugs for Optical fiber cable mount
• 2x Handles with mounting balls
• Panasonic CR-2032 Battery (for moisture alarm)
• Set of Allen Keys
• Padded housing bag and shoulder strap

Recommended Accessories

Vacuum Valve

• 25625 M16 Vacuum Valve II (Pushbutton Release)

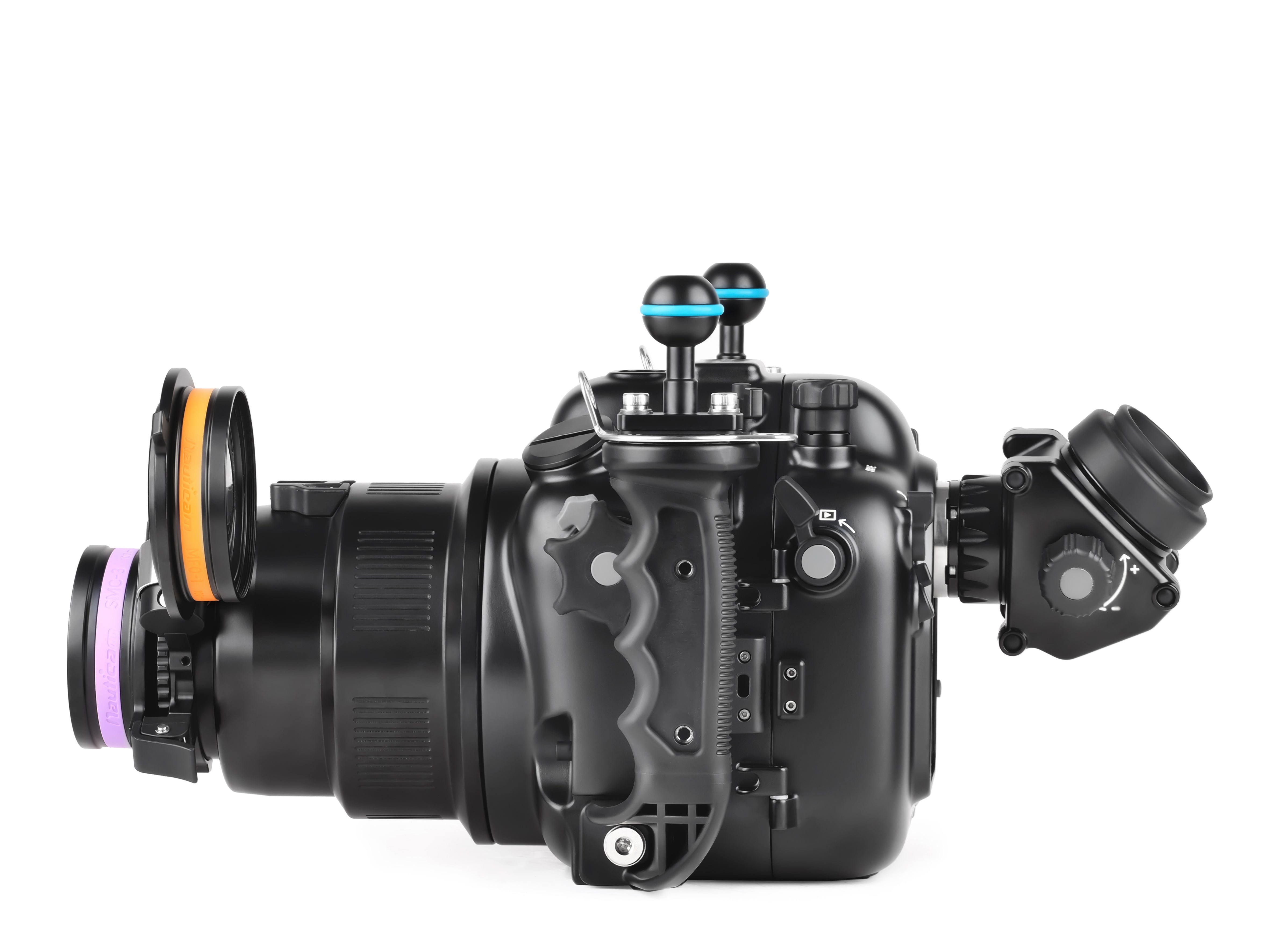

Viewfinder

• 32212 Nauticam Full Frame Straight Viewfinder 40°/ 0.8:1

• 32214 Nauticam Full Frame Angle Viewfinder 40°/ 0.8:1
• 87213 Reverse Angled Viewfinder for EMWL40°/ 0.8:1
• 87214 Reverse Straight Viewfinder for EMWL 40°/ 0.8:1
• *32212/32214, 87213/87214 are preferred.

Hand Strap

• 28130 Hand Strap for 28113

Optical Trigger

• 26305 mini Flash trigger Fujifilm/Canon/Panasonic

Housing Mount

• 25221 M10 strobe mounting ball for housing
• 25224 M10 strobe mounting ball for housing (with hole for using with lanyard)
• 17959 Housing Mounting ball with 1/4'' screws
• 17960 Universal Quadra-Pod Plate for Nauticam Housings
• 25218 mounting ball set for tripod

Surface USB-PD Power Bank

•  26325 USB-C Bulkhead with USB-C Connector *Can be installed on either M24 or M16.
•  26326 M24-M16 Adaptor for use with 26325   *for use with M24 only.

HDMI Output

1) Required accessories for HDMI 2.0 Cable System

• 25086 M24 adaptor for HDMI 2.0 cable (incl. tightening tool)
• 25099 M24A2R200-M28A1R170 HDMI 2.0 Cable (for NA-a1 to use with Ninja V housing)

Compatible HDMI 2.0 Monitor Options

• Nauticam Atomos Ninja V Housing for Atomos Ninja V 5'' 4kp60 4:2:2 10-bit recorder/monitor/player (excl. HDMI 2.0 cable)
• Nauticam Atomos Ninja V-S Housing for Atomos Ninja V 5'' 4kp60 4:2:2 10-bit recorder/monitor/player (excl. HDMI 2.0 cable) with Atomos AtomX SDI Module
• 17926 Nauticam NA-Ultra5 Housing for SmallHD Ultra 5 Camera Monitor

2) Required accessories for HDMI 1.4 Cable System (can be installed on either the M24 or the M16 accessory port)

• 25033 Standard HDMI bulkhead with M16 thread (included in 17927)
• 26326 M24-M16 Adaptor for use with 26325
• 25075 HDMI (D-A) Cable in 190mm Length for NA-GH5/G9 (for internal connection from HDMI bulkhead to camera)

Compatible HDMI 1.4 Monitor Options

• 17927 NA-Shinobi II Housing for Atomos Shinobi II 5.2'' HDMI Monitor
• Nauticam Atomos Ninja V Housing for Atomos Ninja V 5'' 4kp60 4:2:2 10-bit recorder/monitor/player (excl. HDMI 2.0 cable)
  • HDMI1.4 Cable for Ninja V Housing in 0.75m Length (for connection from Ninja V Housing to HDMI bulkhead) Required for use with 17922
