The NA-Shinobi II Housing is designed around the Atomos Shinobi II, a powerful yet compact 5" 10-bit HDR monitor with a full suite of advanced tools and 1500-nit peak brightness.  Intended for both photo and video shooters, the Shinobi II connects via our HDMI cable system to supported housings to allow for enhanced ease of viewing.

Technical Specifications

split

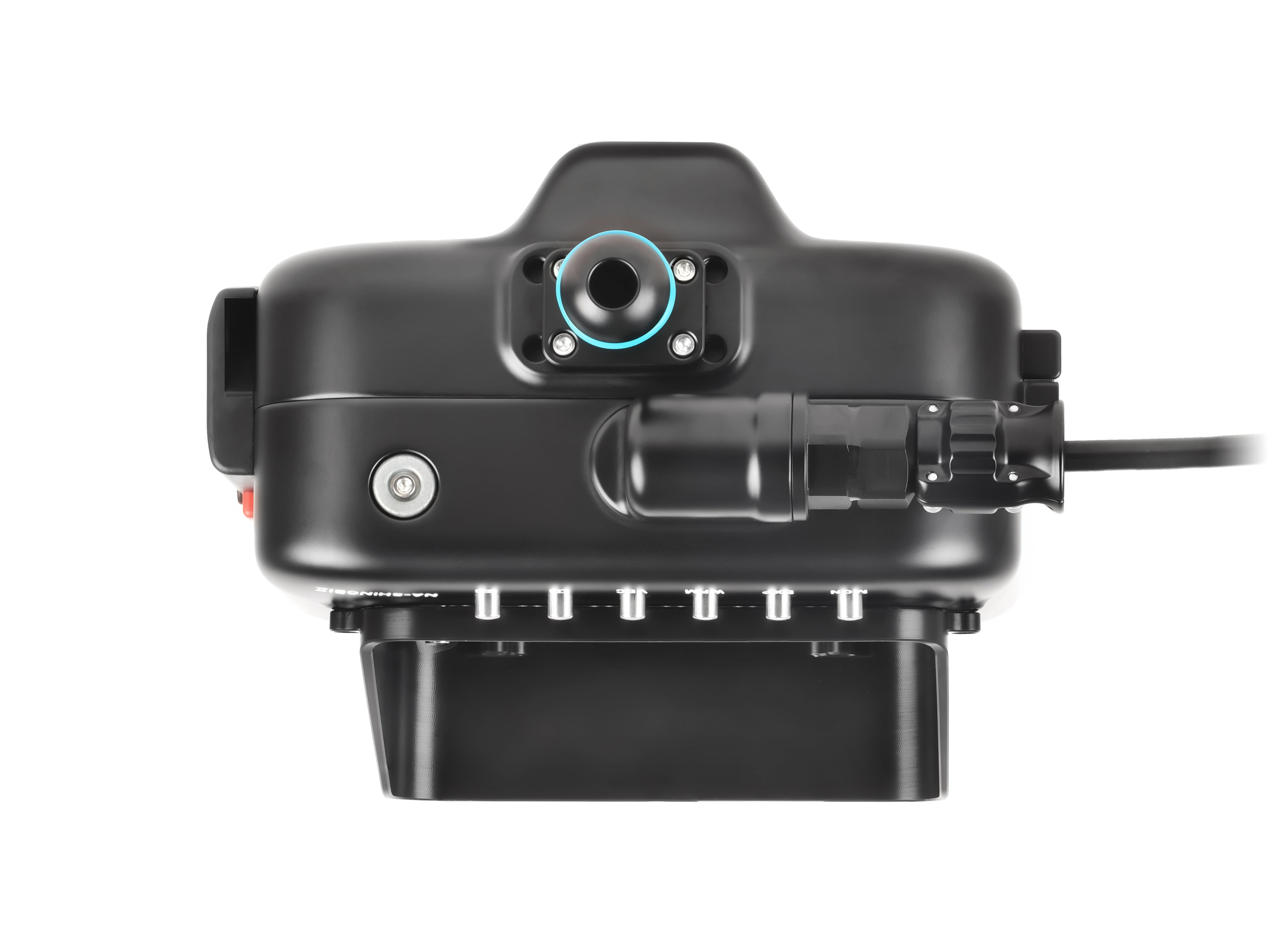

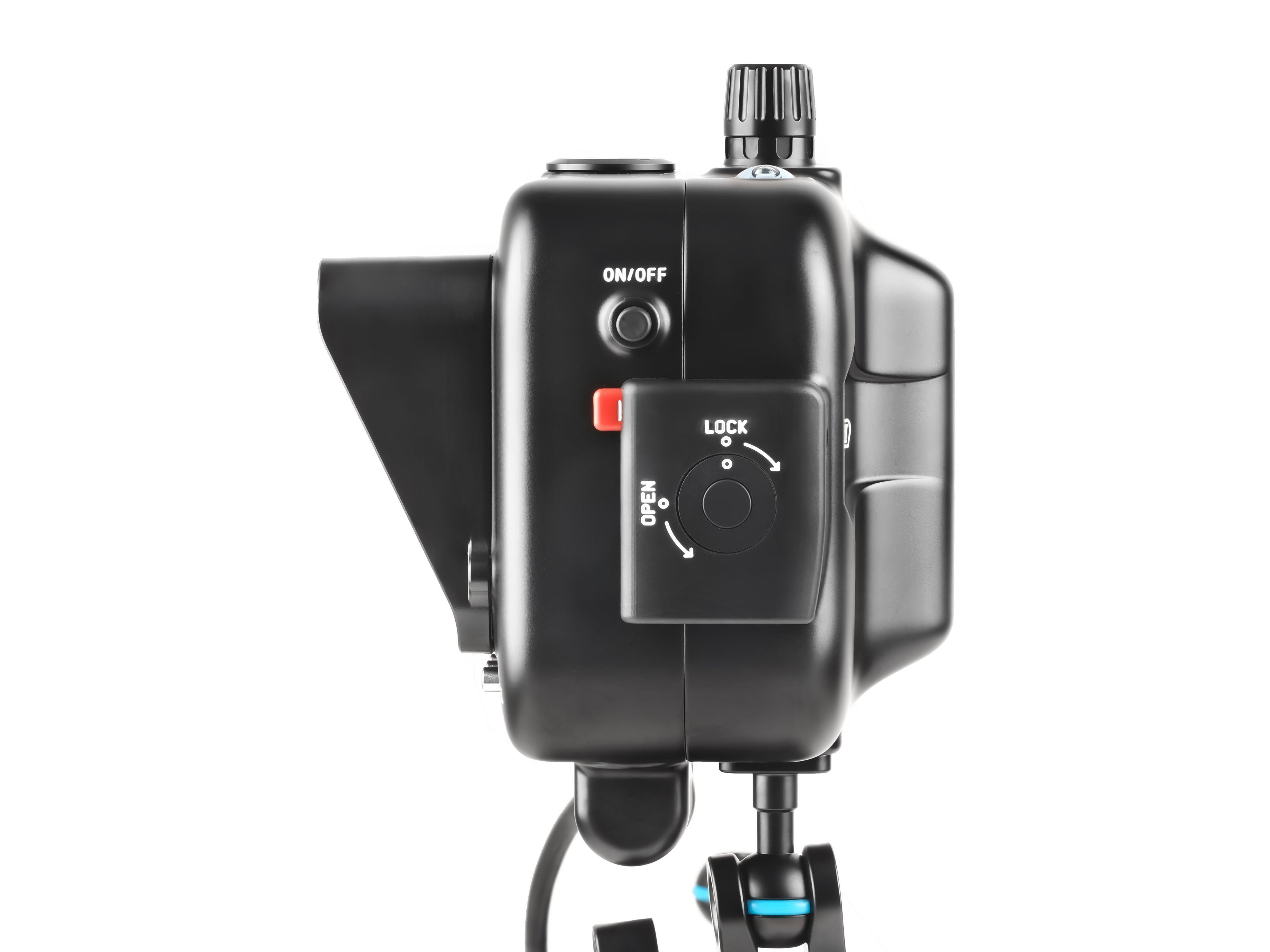

The Nauticam NA-Shinobi II Housing

The Atomos Shinobi II features a bright 5" 1500-nit 10-bit HDR screen that is powered by Sony FP series batteries.  The Nauticam NA-Shinobi II Housing seamlessly integrates the Shinobi II into your underwater system.  Connected to supported cameras and housing with the Nauticam HDMI Cable and Bulkhead system, shooters can take advantage of the monitors full suite of focus and exposure analysis tools.

Enhanced Toolset

The various overlays and visualizations of the Shinobi II can be activated via the buttons on the face of the NA-Shinobi II including the powerful Analysis Mode that places the most commonly used exposure tools alongside the footage.

Various Aspect Ratio overlays are also available in addition to traditional Focus Peaking and False Color overlays.  LUTs can also be uploaded to the monitor to enable Live LUT preview of the footage with the LUT applied.

HMDI Connectivity

The NA-Shinobi II comes with the outgoing watertight Standard HDMI bulkhead and cable pre-installed as well as the additional M16 HDMI that is affixed to the supported camera housing. A 200mm HDMI (D-A) cable is included for connecting the M16 bulkhead to the camera inside the camera housing.

Integrated Vacuum Check and Leak Detection System

The Nauticam vacuum check and leak detection system is shipped with NA-Shinobi II as standard equipment which along with the pre-installed accessory vacuum valve (PN 25625), this monitoring system provides constant updates on the water tight and safe-to-dive status of the housing. A simple color coded LED lighting system lets the user know that the vacuum is solid, or that the housing is losing vacuum. Leak detection is built into the same circuit, so if there is water intrusion, an audible and visual indication will occur. The Nauticam system is temperature compensated, eliminating false alarms caused by a change in outside temperature, or from a camera heating up on an action packed dive.

Resources

Instruction Manual

What's In The Box:

• NA-Shinobi II monitor Housing
• Monitor Hood
• 25625 M16 Vacuum Valve II (pre-installed)
• 25038 HDMI (A-D) cable in 750mm length (for connection from monitor housing to HDMI bulkhead) *preinstalled.
• 25100 HDMI (D-A) 1.4 Cable in 200mm length for NA-a1 (for connection from HDMI bulkhead to camera)
• 25033 Standard HDMI bulkhead with M16 thread (Watertight version)
• 17958 Mounting Ball for NA-502/502B/503/ Ninja V/ Ninja V-S/Shinobi/RT4.7/FHD5/058
• CR2032 Battery (for moisture alarm and vacuum system)
• Spare main O-ring, O-ring remover and lubricant
• M16 extension ring
• HDMI A to A Right Angle Adapter
• Padded Travel Case

Recommended monitor mounting accessories:
•    17959 Housing Mounting Ball with 1/4'' Screws
•    17951 Nauticam Monitor Housing Mounting System (from SN A158538 onwards.)
•    17952 Nauticam Atomos Shogun housing mounting adaptor for NA-A7RIII/α2020/A7SIII/α1//XT4/Z50.
•    17953 Nauticam Atomos Shogun housing mounting adaptor for NA-GH5SV
•    17954 Universal Tripod Plate for Nauticam Housings
•    17957 Nauticam Atomos Shogun Housing Mounting Adaptor for NA-S1R/S1H/BMPCC6K/II/Z7II/1DXII/5DIV/1DXIII//R5/R6
•    16226 Mounting Brackets for Shogun on Epic LT Housing
