The Canon C400 is the next evolution in Canon's C-series Cinema Line.  Built around a full-frame 6K BSI sensor and RF-mount, the C400 also features mechanical ND filters, Dual Pixel AF II and 16 stops of dynamic range.  Canon's C-Series cinema cameras feature legendary underwater color, intuitive and accessible menus and excellent control customizability making it ideal for single shooter or situations or larger productions where flexibility and dependability are key.

Technical Specifications

split

The Canon EOS C400 Cinema Camera

Canon's EOS C-series Cinema Cameras have long been among the most versatile cinema cameras for underwater filmmakers and the C400 is no exception.  Built around a 6K BSI full-frame sensor and the large RF-mount, the C-400 also features mechanical ND filters and Canon's powerful Dual Pixel AF II.

Key Camera Specifications:

Canon EOS-C400

• 6K Full Frame Back-Illuminated Sensor

• 6K60, DCI 4K/2K, UHD 4K120
• Full Frame, Super35 & Super16 Modes
• Triple-Base ISO: 800, 3200, 12,800
• Record Internal Cinema RAW Light, XF-AVC
• Improved Dual-Pixel CMOS AF II

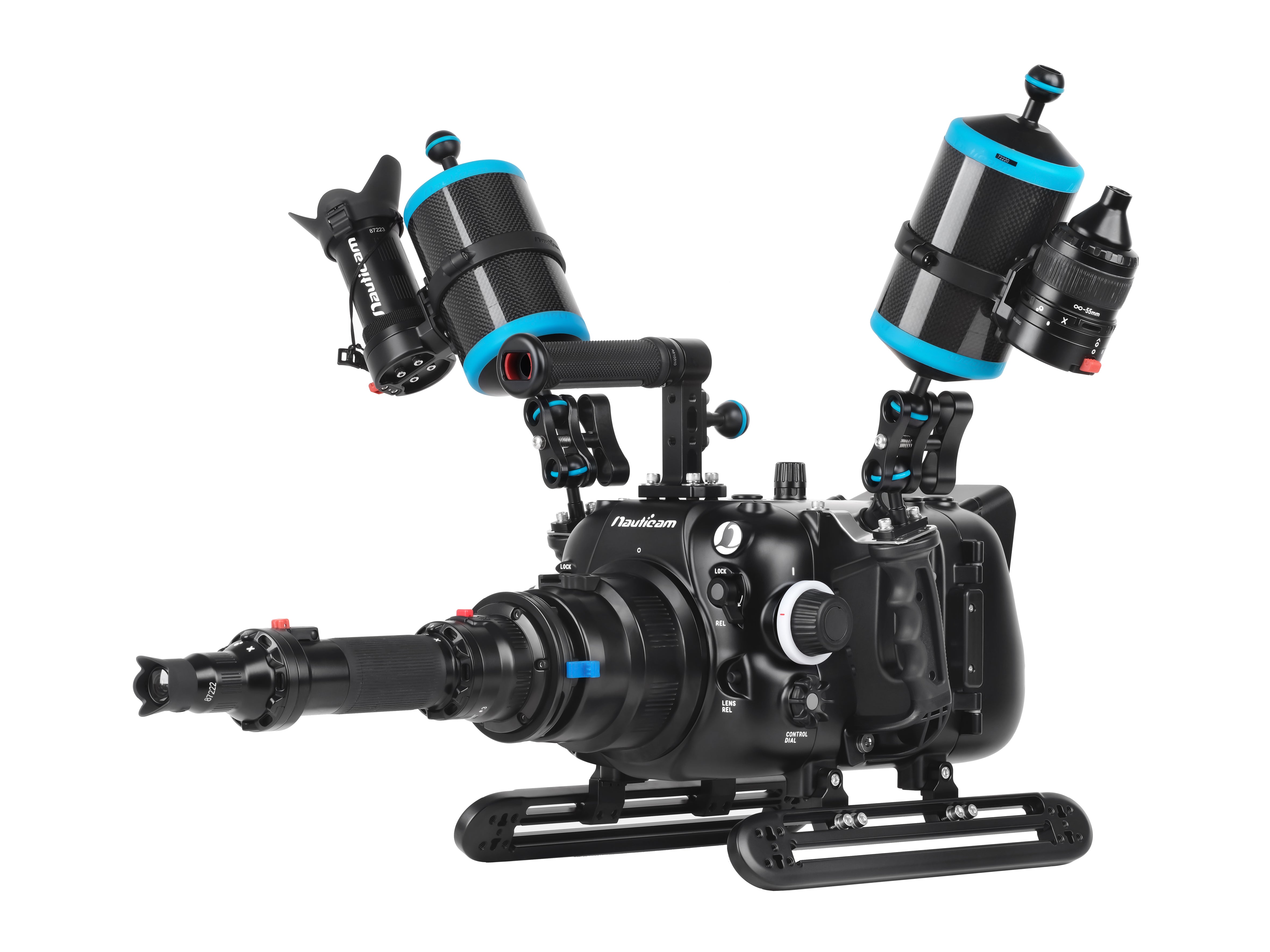

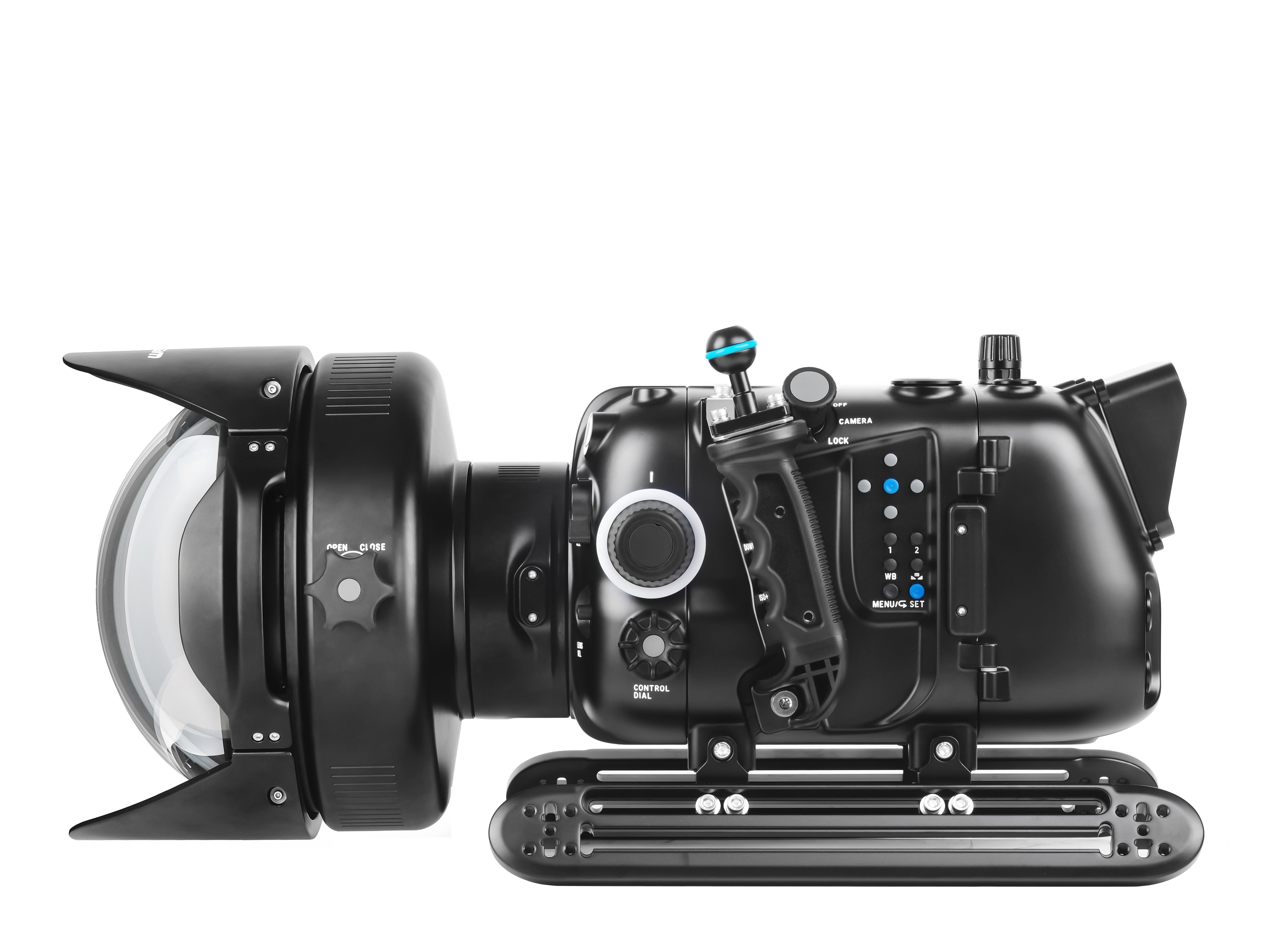

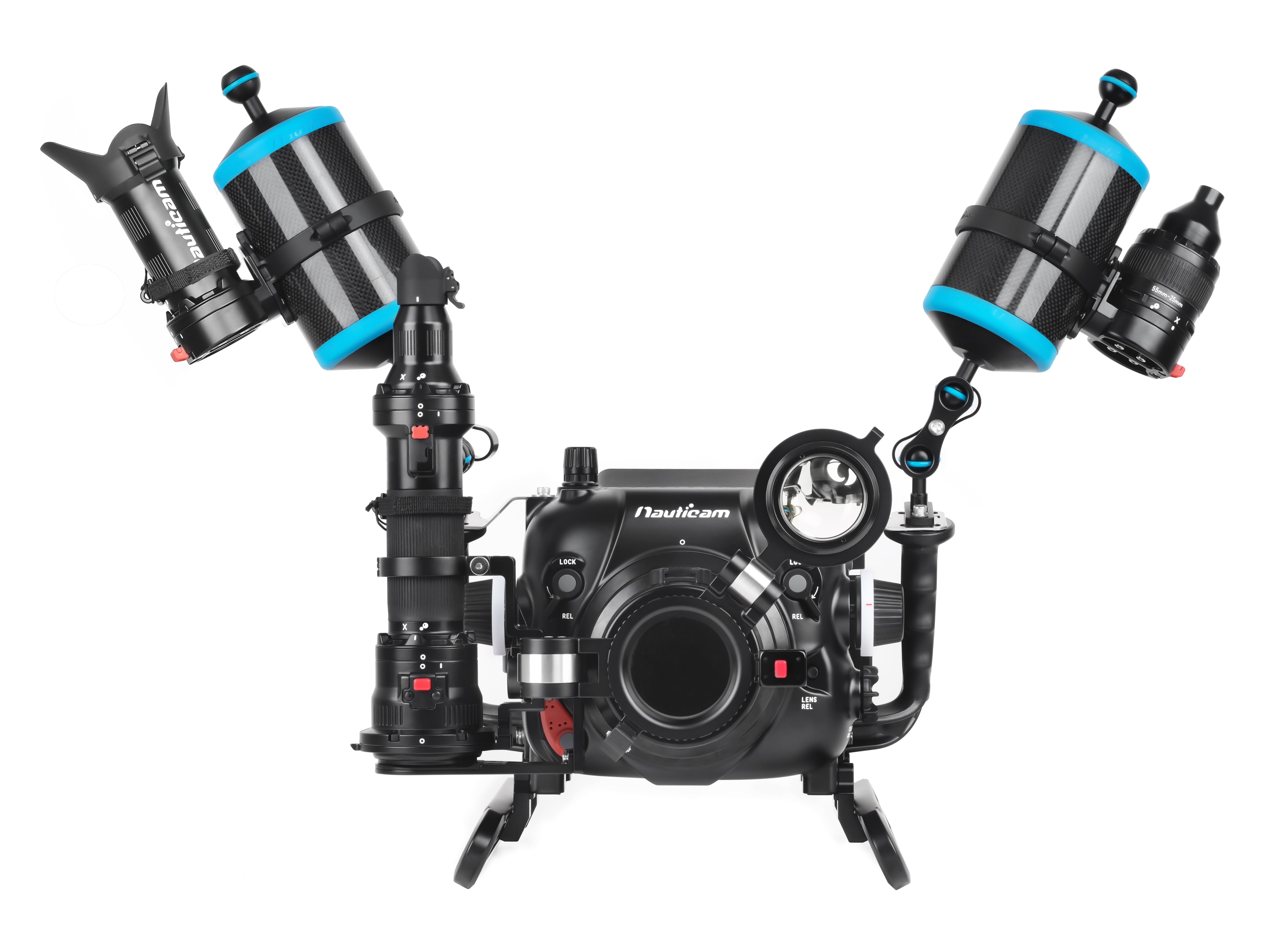

The Nauticam NA-C400 Underwater Housing

The Nauticam NA-C400 is a professional underwater aluminum housing that builds on Nauticam's extensive cinema housing lineup.  The NA-C400 features the large N120 port opening shared with other Canon RF and EF-mount cameras such as the R5II and R5C.  This allows for the use of identical lens and port combinations when using a combination of RF-mount Canon cameras on a project with Nauticam housings.

Mission Control

Nauticam engineers obsess over placing essential controls where they are needed most so you never miss a shot looking for a button, dial or lever.  Nauticam's cinema lineup features large cinema-style lens control dials for precise control of focus and zoom.  Exposure and capture controls are placed within easy reach of the ergonomic handles.

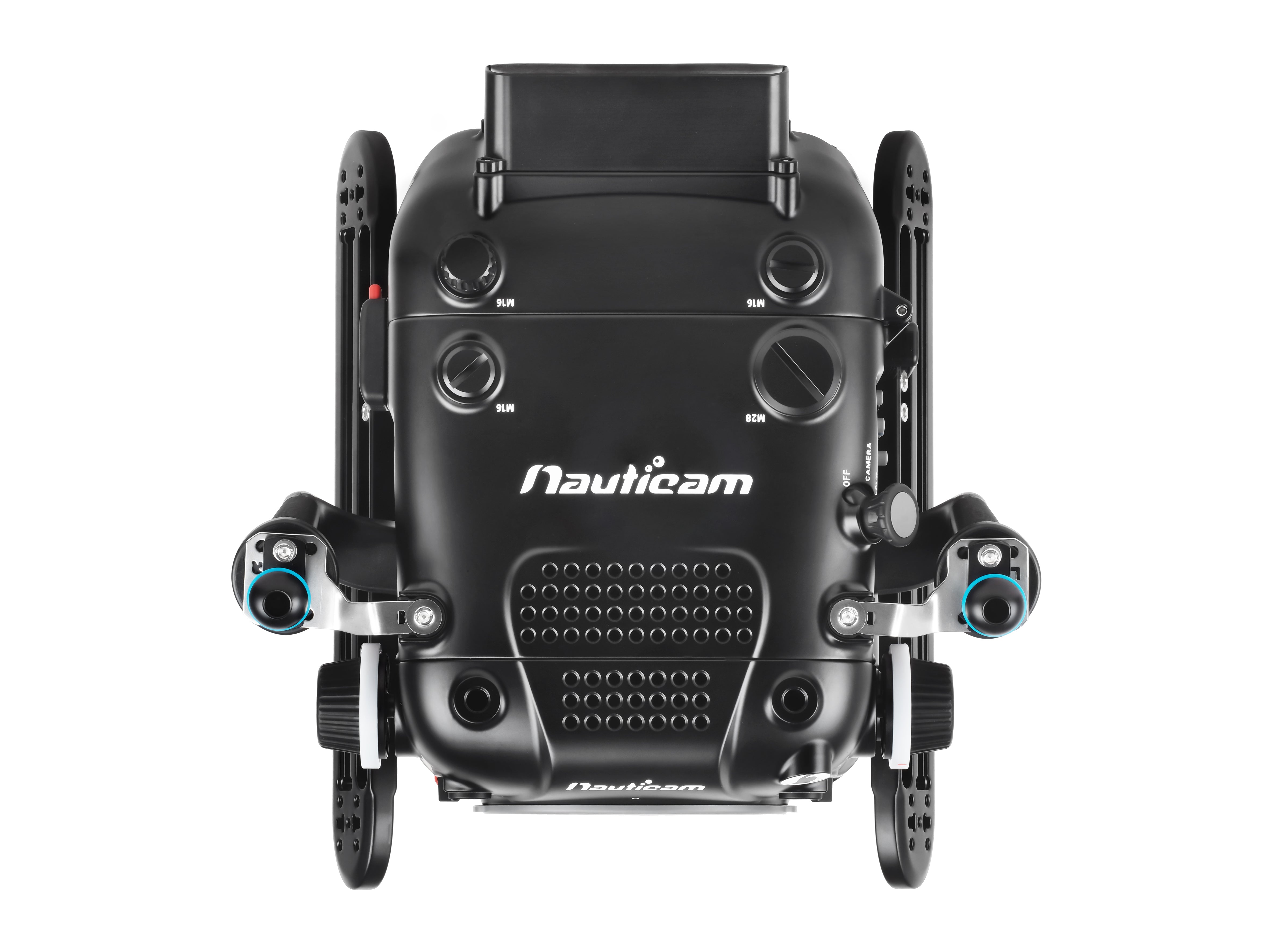

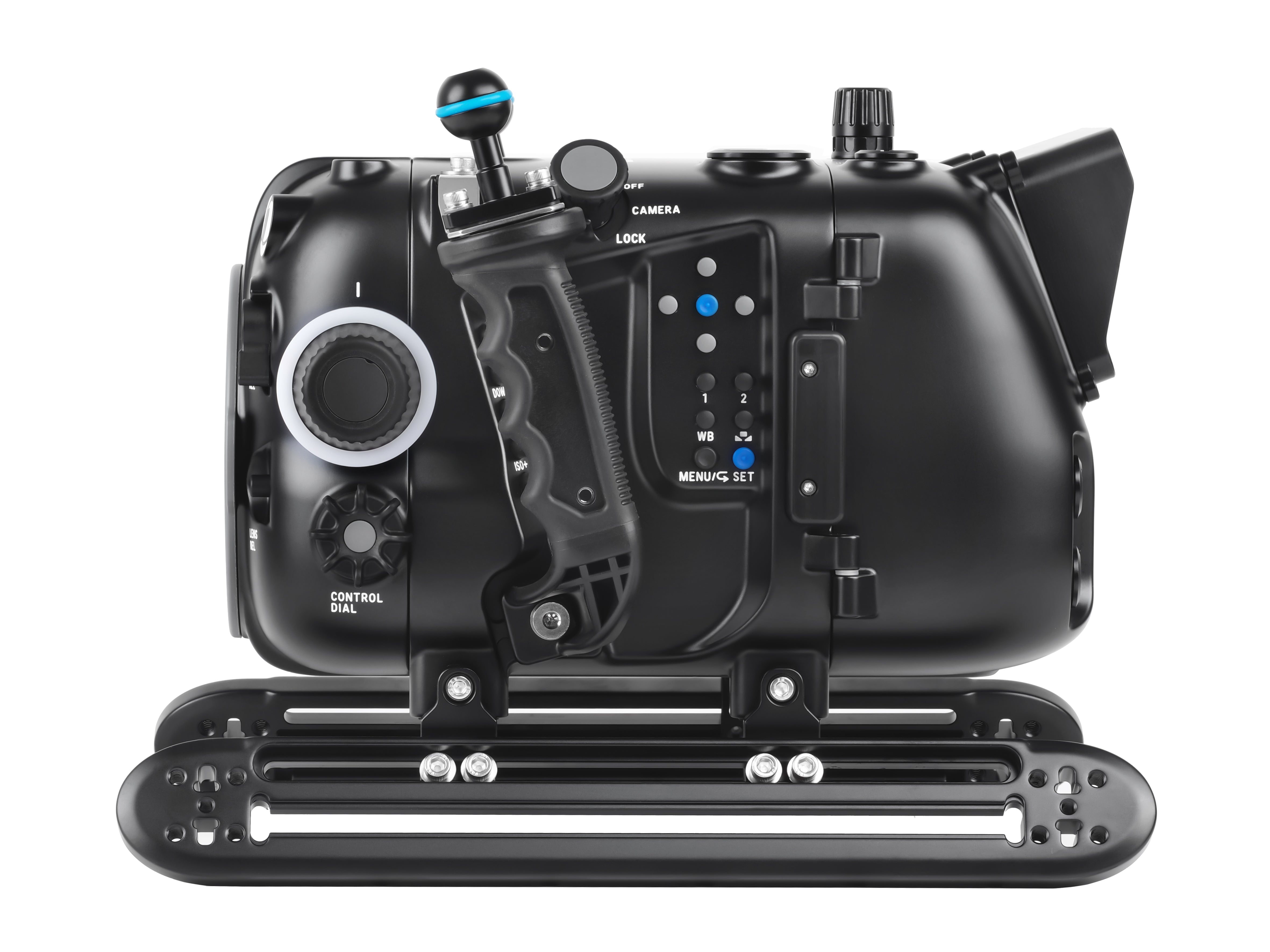

In addition to mechanical controls for Power, Zoom, Focus and Lens Release, the NA-C400 features electronic controls at the rear, and both sides of the housing through the camera's remote functionality.  The left handle adjacent controls are for 'Up', 'Down', 'ISO+', and 'ISO-'.  Right handle adjacent controls are for 'Rec', 'Fn3', 'Fn4', 'IRIS+' and 'IRIS-'.  The main control board accesses 'Left', 'Right', 'Up', 'Down', 'Set', '1', '2', 'Set', 'MENU/REC Review'.

LCD Monitor Support

The C400 features a detachable LCD screen that can be easily integrated into the NA-C400.  The LCD monitor is supported inside the housing and is mounted at the rear of the camera with a supplied bracket that allows it to be easily viewed underwater through the shaded rear window making for a streamlined filming solution.

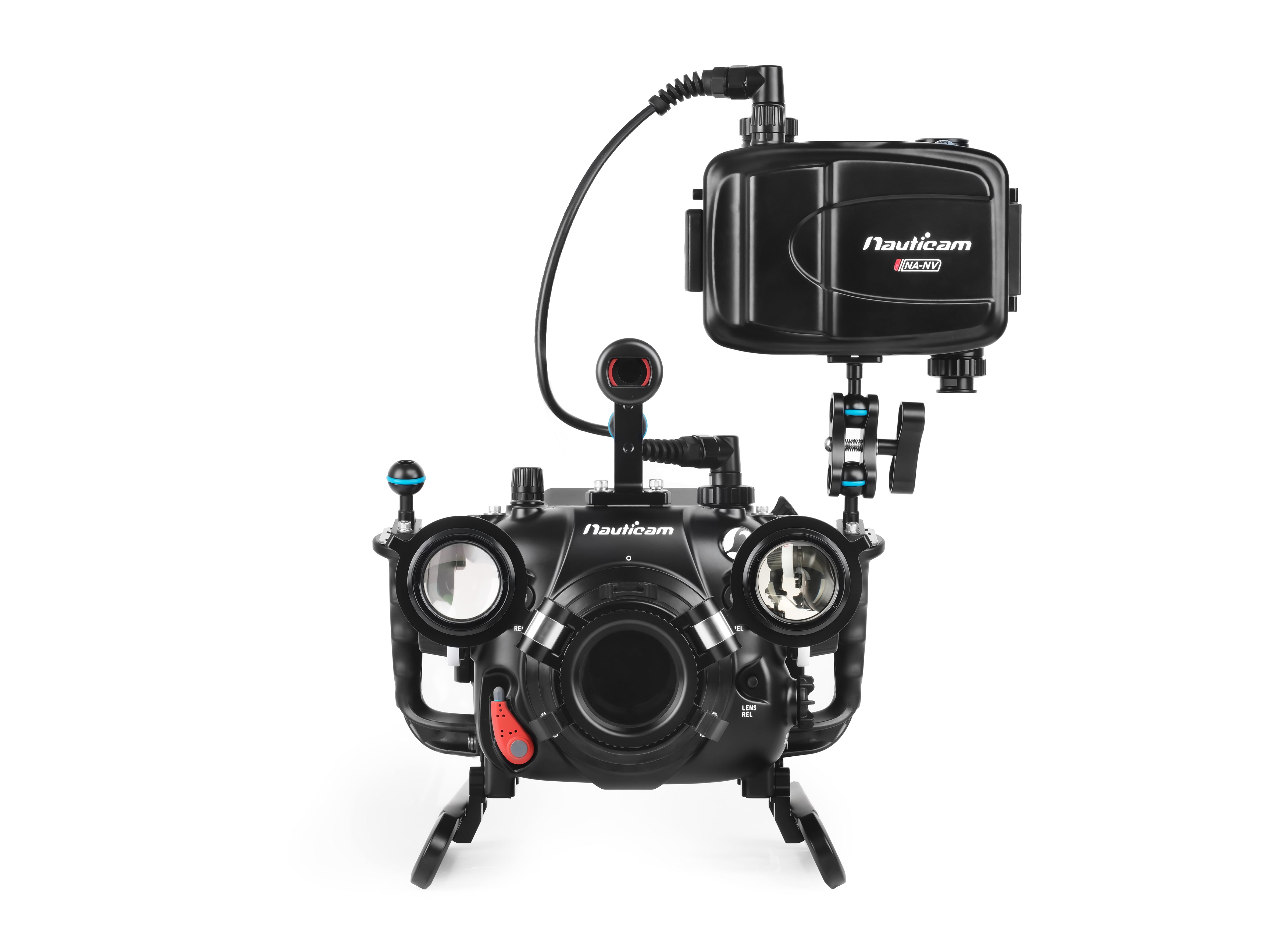

HMDI/SDI

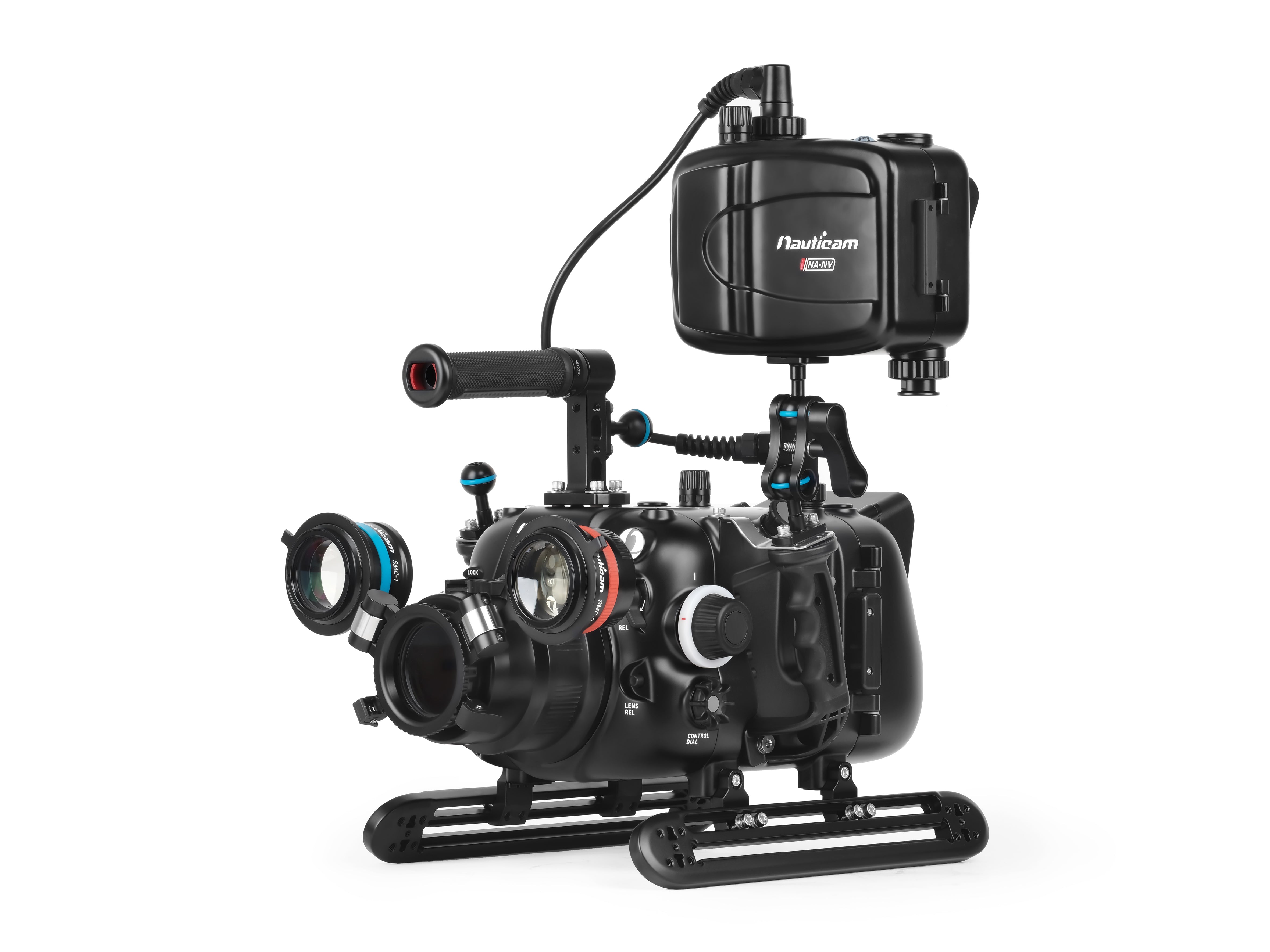

The NA-C400 supports Nauticam's optional HDMI 2.0 and 1.4 system that can accommodate external monitors or recorders in Nauticam housings. SDI output is also available for either surface monitoring or supported monitors.  The NA-C400 has 1 M28 and 5 M16 bulkheads to accommodate a variety of configurations to suit mounted or remote setups.

Battery

The NA-C400 can accommodate either the BP-A30N or BP-A60N batteries or a combination of the BP-A30N and an FXLION NANO THREE 150Wh Micro V-Mount battery for extended runtimes.

Resources

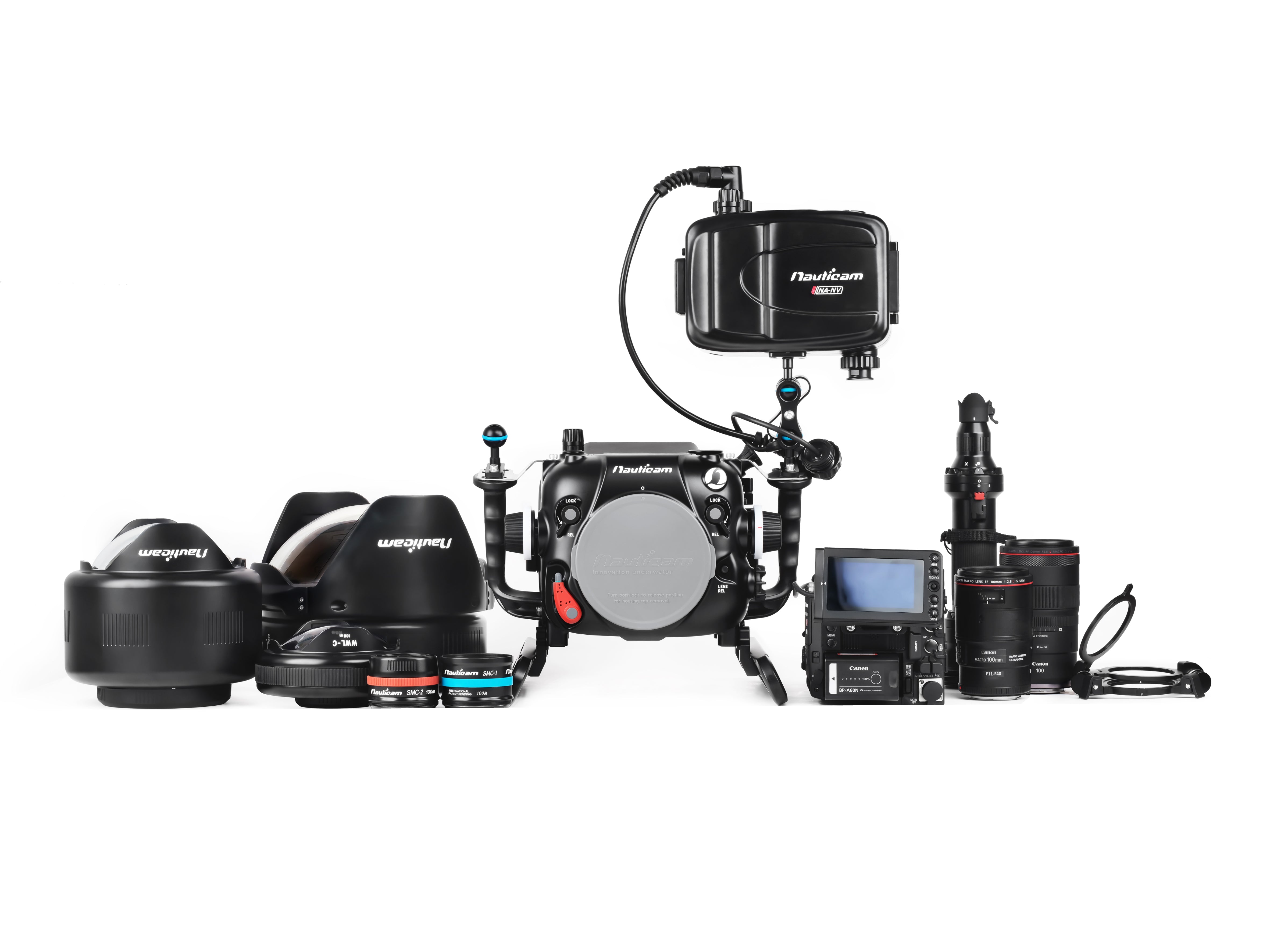

What's In The Box:

• NA-C400 Housing with vacuum valve pre-installed
• Housing Cap
• 2x Handles with mounting balls and 2x handle brackets
• Panasonic CR-2450 Battery (pre-installed for moisture alarm)
• Spare main O-ring, O-ring remover and lubricant
• Set of Allen Keys
• Housing skids
• Monitor Shade
• Safety box


Recommended Accessories:

Housing Mount

• 25221 M10 strobe mounting ball for housing
• 25224 M10 strobe mounting ball for housing (with hole for using with lanyard)
• 25228 M5 strobe mounting ball for housing
• 16226 Mounting Bracket for Monitor Housing to use with Cinema Housings
• 16701 Top Handle for E2/F/C70/BGH1/BMPCC
• 17961 Swivel and Tilt Adjustable Monitor Mount System (To be release)

Trim Weights

• 16232 0.25kg Trim Weights for 16227 (4pcs)
• 16233 0.5kg Trim Weights for 16227 (4pcs)

Vacuum Valve

• 25625 M16 Vacuum Valve II (Pushbutton Release)

Handles

• 28123 Pair of handles - size S (10mm closer to housing)

HDMI OUTPUT:

Required accessories for HDMI 2.0 Cable System

• 25089 M28 HDMI 2.0 Adapter
• 25078 M28A1R225-M28A1R170 HDMI 2.0 Cable (for NA-BMPCCII/S1R/S1H to use with 17922/17909N)

Compatible Monitor Options

• 17922 Nauticam Atomos Ninja V Housing for Atomos Ninja V 5” 4Kp60 4:2:2 10-bit
  Reorder/Monitor/Player (excl. HDMI 2.0 cable)
• 17926 Nauticam NA-Ultra5 Housing for SmallHD Ultra 5 Camera Monitor

Required accessories for HDMI 1.4 Cable System

• 25033 Standard HDMI bulkhead with M16 thread (Mounted on the right side M16 of middle housing)
• 25100 HDMI (D-A) 1.4 Cable in 200mm length for NA-a1 (for connection from HDMI bulkhead to camera)

*25033 and 25100 is included in 17927 monitor housing

Compatible Monitor Options

• 17927 NA-Shinobi II Housing for Atomos Shinobi II 5.2" Monitor with HDMI 1.4 input

SDI OUTPUT:

Required accessories for SDI Cable System

• 17926S SDI Cable Set for use with NA-Ultra5/17922S

Compatible Monitor Options

• 17922S Nauticam Atomos Ninja V-S Housing for Atomos Ninja V 5” 4Kp60 4:2:2 10-bit
  Reorder/Monitor/Player (excl. HDMI 2.0 cable) with Atomos AtomX SDI Module
• 17926 Nauticam NA-Ultra5 Housing for SmallHD Ultra 5 Camera Monitor

Required accessories Surface Monitor

• 25058 M16 SDI Bulkhead   *Only support to be installed on the back door.
• 25060 SDI cable in 0.4m length (for connection from camera to underside of SDI Bulkhead)
• 25064 SDI surface monitor cable in 15m length
  (for connection from SDI Bulkhead to Surface Monitor on land)
• 25065 SDI surface monitor cable in 45m length
  (for connection from SDI Bulkhead to Surface Monitor on land)
