Introducing the Nauticam 7" G7 HD UltraBright Monitor. Crafted for professional videographers and photographers, this advanced monitor delivers an incredibly bright 3000 nit display, ensuring optimal visibility even in challenging lighting conditions. With up to 6 hours of battery life, you can count on it for extended shoots, providing consistent, reliable performance throughout your dive.  Equipped with essential tools such as Focus Peaking, False Color, Histogram and many more, the Nauticam 7" G7 HD UltraBright Monitor offers you the ultimate monitoring tool for any project.

* Production version may differ from the displaying realistic rendering/photos.

Technical Specifications

*1.  Doesn’t support HDMI in and converted to SDI Out for cross conversion.
*2.  Please make sure the 4 protected batteries are full charged before use.

split

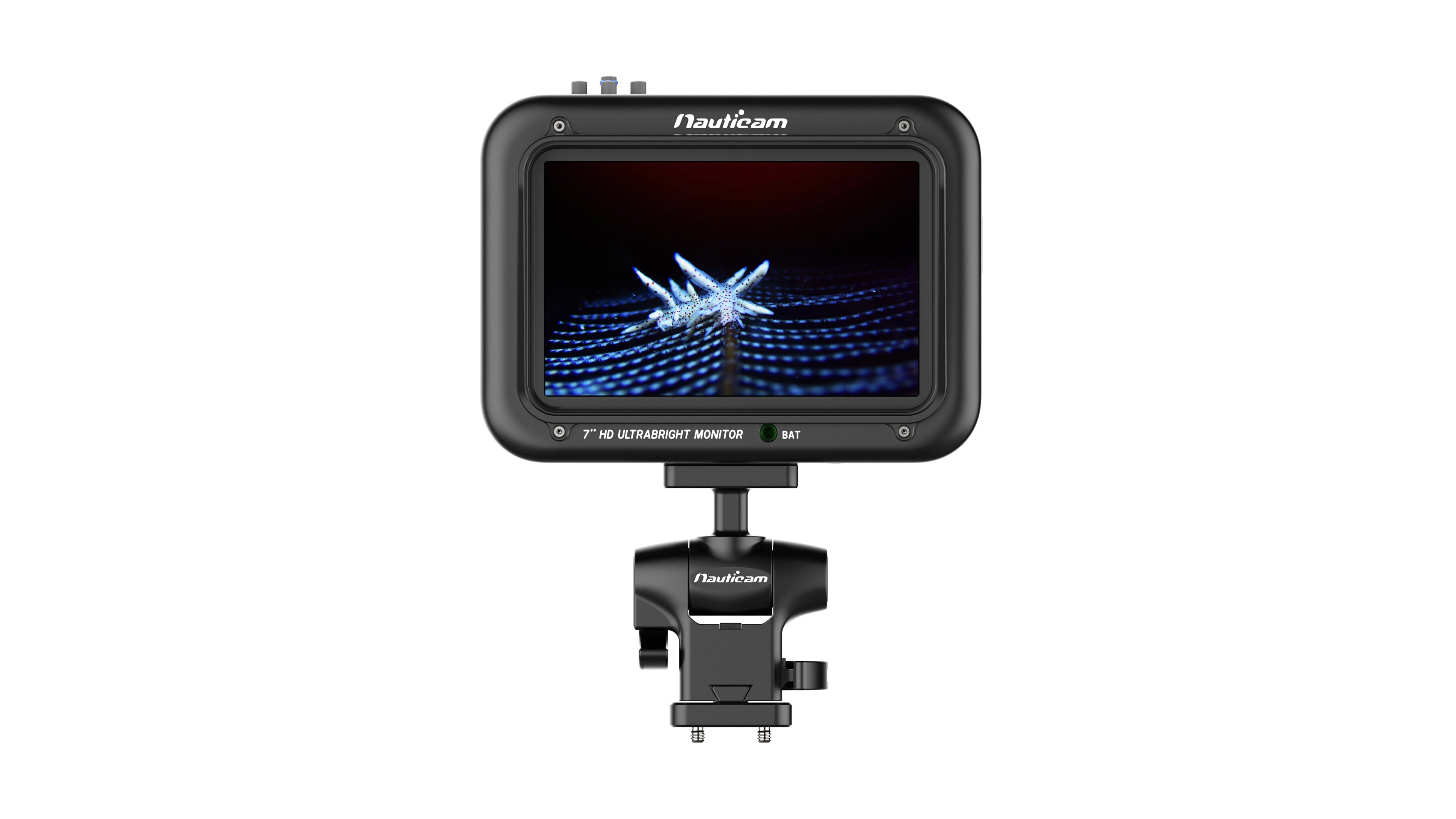

The Nauticam 7'' G7 HD UltraBright Monitor

Key Features:

• Inputs and Outputs: The G7 supports both 4K HDMI and 2K SDI inputs as well as SDI output.  Please note HDMI to SDI cross conversion is not supported.

• Exceptional Brightness & Clarity: With an impressive 3000 nit brightness, the monitor provides clear, vibrant images even in direct sunlight, so you won’t miss a detail.

• Advanced Image Control Tools: Easily access the following tools all at your fingertips.  Anamorphic De-Squeeze, Customizable Aspect Ratios, False Color, Focus Assist, Focus Peaking, Histogram, Image Flip, Vector scope, Waveform, Zebra

• Swivel and Tilt Adjustable Monitor Mount System:  This newly designed mount ensures smooth adjustments any any angle, making this monitor an invaluable tool for underwater image makers.

Resources

Instruction Manual PDF Download Coming Soon

What’s In The Box:

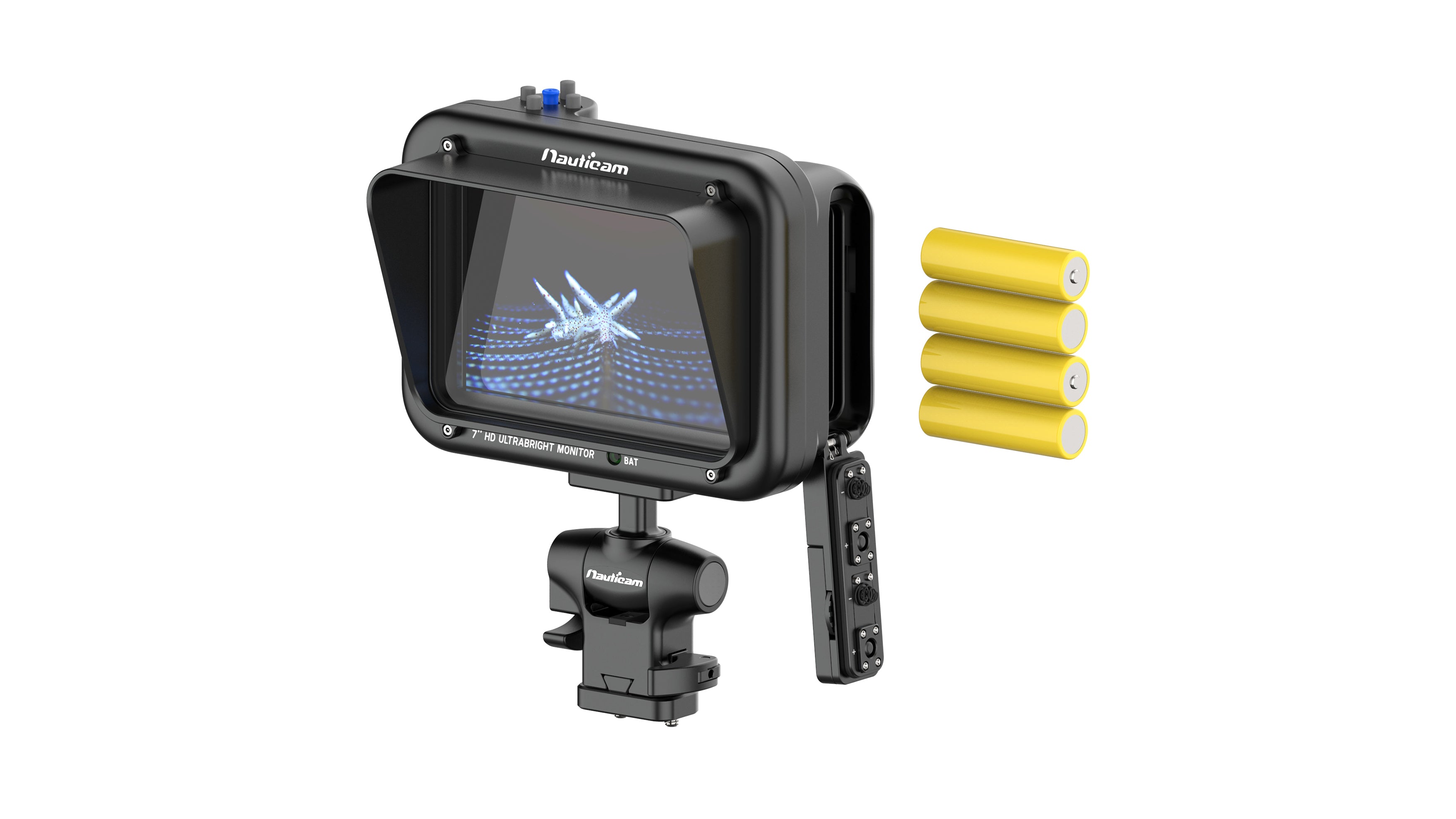

• 16611 Nauticam 7'' G7 HD UltraBright Monitor
• Monitor Hood
• Swivel and Tilt Adjustable Monitor Mount System (attached to camera/Cine Housing with 2x ¼’’-20 UNC screws)
• Spare O-ring for battery door, O-ring remover and lubricant
• Padded Travel Case


Required Accessories to use with HDMI 1.4 input:

• 25033 Standard HDMI bulkhead with M16 thread
• 25081 M24-M16 Step Down Adaptor may be required for a certain camera
• 25100 HDMI (D-A) 1.4 Cable in 200mm length for NA-a1/FX3/GH6 (for connection from HDMI bulkhead to camera)
• 25047 HDMI (D-D) 1.4 cable in 800mm length (for connection between HDMI bulkheads)

Required Accessories to use with SDI input:

• 25058 M16 SDI Bulkhead
• 25060 SDI cable in 0.4m length (for connection from camera to underside of SDI Bulkhead)
• 25061 SDI cable in 0.75m length (for connection between SDI Bulkheads)


Required Accessories to use with SDI out

• 25064 SDI surface monitor cable in 15m length (for connection from SDI Bulkhead to Surface Monitor on land)
• 25065 SDI surface monitor cable in 45m length (for connection from SDI Bulkhead to Surface Monitor on land)
