The Canon PowerShot V1 is the latest compact camera from Canon which features an impressive 1.4" CMOS sensor, Dual Pixel CMOS II autofocus system and an ultra wide built in 16-50mm power zoom lens which pairs well with the Nauticam Water Contact Optics.
| Dimensions | 165mm (W) x 144 mm(H) x 139 mm(D) |
| Weight in Air | 1.2kg |
| Buoyancy in Water | Negtive 0.1g (incl. camera and battery) |
| Depth Rating | 100m |
| Port Mount | N50 |
| Accessory Ports | Front M16 x 1, M10 x1 on Top |
Key Camera Specifications
Active Cooling Extends Shooting Times
NA-CV1 is the latest iteration in a lineup of advanced housings for very capable compact cameras supported by Nauticam. Many features found on professional DSLR systems have been integrated into this system, and the result is an underwater housing that allows the user to harness the full potential of this advanced compact camera in the water.
The basic functions and ergonomic enhancements that Nauticam users have grown to know and love are incorporated in NA-CV1. The housing is machined from a solid block of aluminum, then hard anodized to seal out corrosive salt water. It is closed via a simple, yet secure locking rotary latch. The right side of the housing is sculpted to fit the palm of the user’s hand, and Nauticam’s two-stage shutter release lever provides clear differentiation between the half press and full press shutter release positions. All functions are clearly labeled.
The Nauticam leak alarm and vacuum monitoring system is installed as standard equipment. This system provides an audible and visual alert to any water entry in the housing, and when combined with an optional accessory M16 Vacuum Valve II (25625) the watertight integrity of the system can be tested before ever entering the water and monitored during every dive.
Expert product design, modern manufacturing techniques, top quality materials backed by a two-year warranty, and a critical focus on the user experience combine to produce the premier system for Canon Powershot V1.

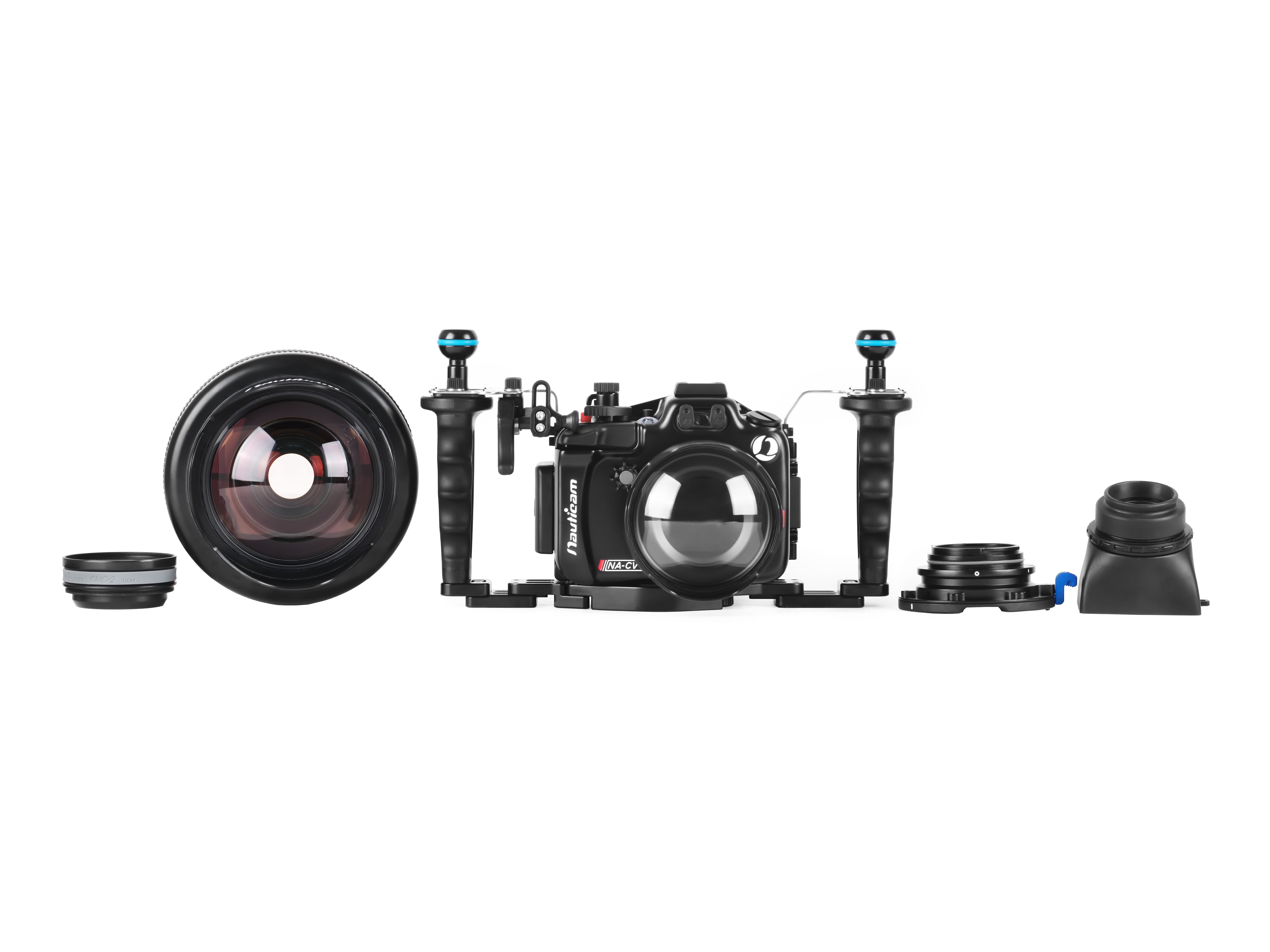

The NA-CV1 ships with the N50 3.5" Acrylic Dome Port that allows the full 16-50mm zoom range, but other ports are available from the N50 system. When combined with the 38703 N50 Short Port 25, you can add on the 83203 WWL-C for a converted FOV of 130 degrees to 71 degrees.
PDF Manual Coming Soon
1. N50 3.5'' acrylic dome port , Zoom Range: 16-50mm. *The minimum focus distance at Wide 16mm is 25mm, and at Tele 50mm is 530mm.
2. 38703 N50 Short Port 25 + 83203 WWL-C, Lens FOV 84-46º, Converted FOV. 130-71º, Zoom Range 24-50mm *slight vignetting at 24mm.
3. 38703 N50 Short Port 25 + 83202 WWL-1B, Lens FOV 75-46º, Converted FOV. 130-80º, Zoom Range 28-50mm
4. 38703 + 83214 Bayonet Mount Adaptor for SMC/CMC with MFO-1, CMC-2/1.
*Test at focal range 50mm | The Smallest Subject Size | Working Distance |
without diopter | 105 x 70 mm | 175-∞ |
with 81501 MFO-1 | 89 x 59.3 mm | 116-1150 mm |
with 81302 CMC-2 | 48 x 32 mm | 55-125 mm |
with 81301 CMC-1 | 38 x 25.4 mm | 37-74 mm |
* Final product apperance might be different from image shown. Product specification is subject to change without notice.
