Features:

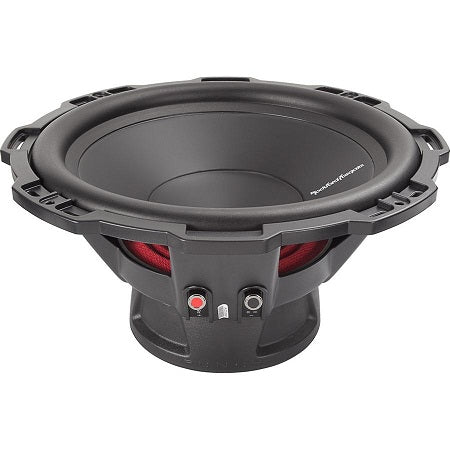

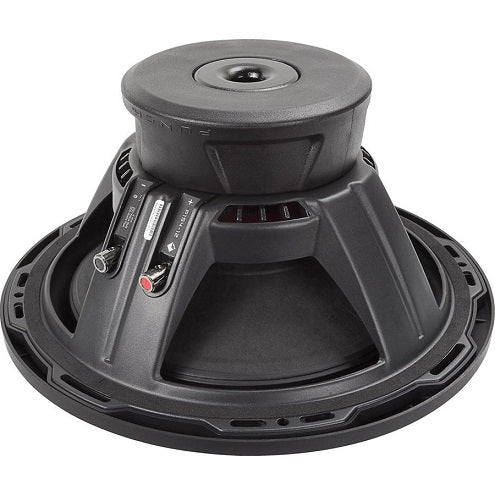

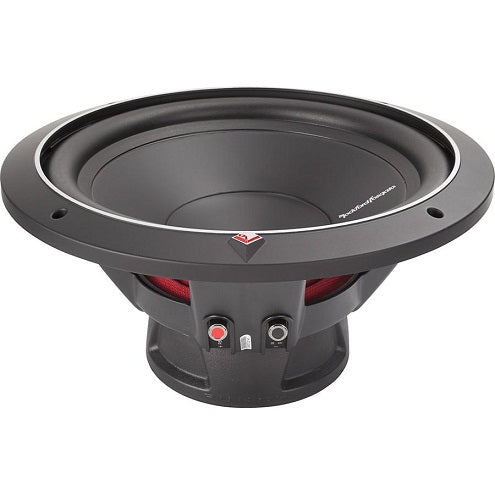

• 10 Inch Single 4 Ohm Punch Series Stage 1 Subwoofer
• Power Handling:
  • Peak: 500 watts
  • RMS: 250 watts
• Frequency Response: 30-250 Hz
• Sensitivity: 85 dB
• Xmax: 7.0mm
• Cutout dimensions: 9-1/8 Inch
• Mounting Depth: 5-3/8 Inch
• Impedance: Single 4 ohm
• Decorative ABS trim ring for attractive appearance
• High density NBR half-roll surround for enhanced excursion
• Fatigue resistant and reduced strain stitched on flexible lead wire design
• High modulus Kevlar reinforced paper cone and dust cap provides durability
• Optimized motor magneteics with extended pole piece and bumped backplate
• High quality 16 gauge compound bend frame geometry adds to the sturdy construction
• Semi flexible PVC removable protective motor cover helps keep motor clean and dust free
• Tear and fatigue resistant poly-cotton spider will hold up against high amounts of excursion
• High temperature 2 Inch 4-layer voice coil with spun laced Nomex insulating reinforcement collar
• Multi point high-temperature/high-strength neck joint bonding technique for a cleaner bass output
• Proprietary spider venting/cooling technique helps keep subwoofer operating at a safe temperature
• Custom insulated/isolated 10 AWG nickel plated compression input push terminal assembly will keep connection secure and resist corrosion

Specifications:

• Subwoofer Series: Punch P1
• Subwoofer Size: 10 Inch
• Peak Power Handling: 500 watts
• RMS Power Handling: 250 watts
• Voice Coil(s): Single
• Impedance (Per Voice Coil): 4 ohms
• Voice Coil Diameter: 2 Inch
• Frequency Response: 30 - 250 Hz
• Sensitivity: 85 dB
• Xmax (millimeters): 7.0 mm
• Subwoofer Design: Round / Circle
• Main Cone Color: Black
• Woofer Composition: Kevlar Reinforced Pulp (Paper)
• Woofer Surround: NBR Half Roll
• Subwoofer Grille: No
• Re-Cone Kit Available: No
