Features:

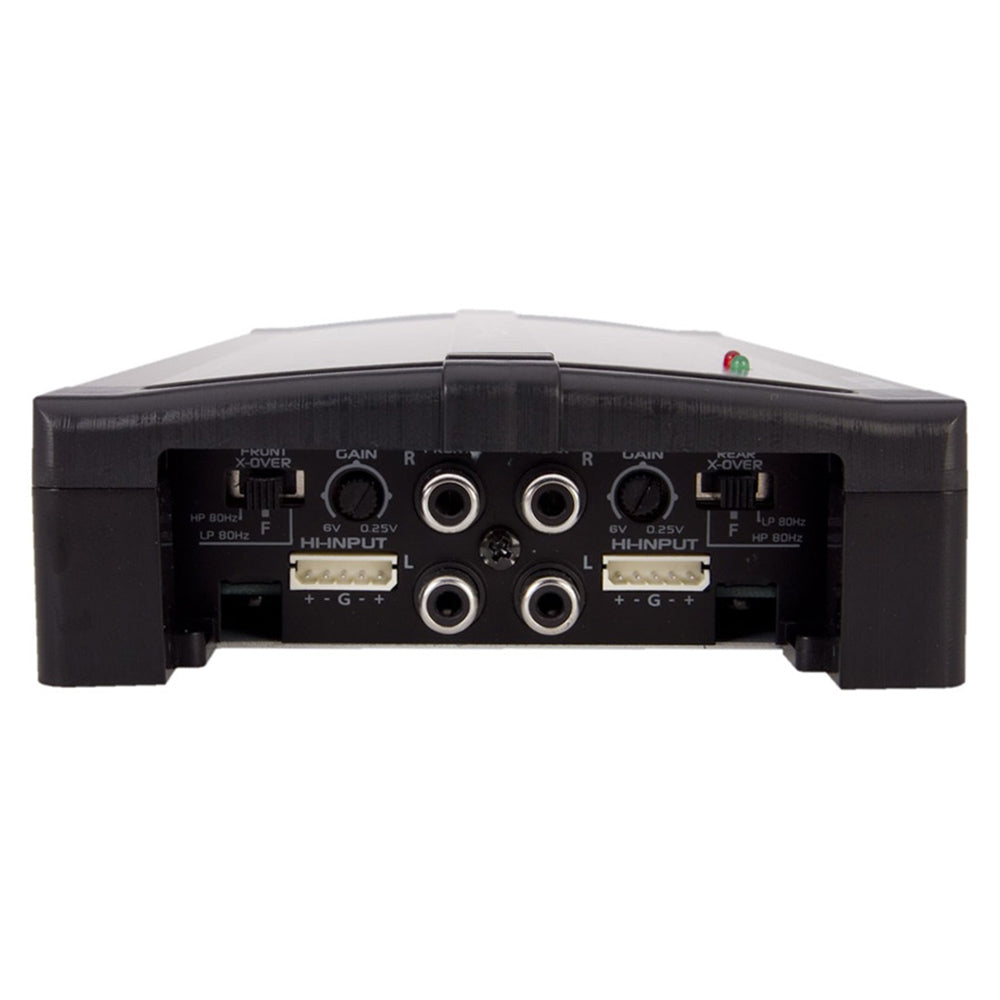

• Razor Series 4-Channel Class D Car Amplifier
• RMS Power Rating:
  • 4 ohms: 285 watts x 4 chan.
  • 2 ohms: 375 watts x 4 chan.
  • Bridged, 4 ohms: 750 watts x 2 chan.
• Max power output: 3000 watts
• MOSFET Power Supply w/ Audiophile Grade IRTM Transistors
• LED power (green) and protect (red) indicators
• 4 & 2 channel operation
• Speaker-level (high-level) inputs
• 3-way protection circuitry (thermal, overload, and speaker short protection)
• Military Grade SMT PCB Maintains Dynamic Performance
• Variable 12dB High Pass & Low Pass Crossovers
• 4 gauge power and ground wiring is recommended for installation. Contact us for information regarding a discount on select amplifier kits from our website when purchased together with this amplifier.
• Dimensions: 4.75 Inch W x 12.25 Inch L x 1.625 Inch H

Specifications:

Power Specifications - Full Range Channels:

• RMS Power @ 4 ohms: 285 watts x 4 channels
• RMS Power @ 2 ohms: 375 watts x 4 channels
• Bridged RMS Power: 750 watts x 2 channels

Amplifier Specifications:

• Amplifier Series: Razor (Power Acoustik)
• Amplifier Class: D
• Number of Channels: 4
• Total Peak Power Output: 3000 watts
• Maximum Input Gauge Size: 4 AWG
• Minimum Impedance Unbridged: 2 ohms
• Minimum Impedance Bridged: 4 ohms
• Speaker Level Inputs: Yes
• Built-in Crossover: Low-pass (LP), High-pass (HP), Full (AP)
• Bass/Gain Remote: No
• Strappable: No
• CEA-2006 Compliant: No
