If you are a fanatic of a great sounding speaker, then the Rockford Fosgate Punch Series is meant for you. It is a full-range speaker with a flex-fit basket to ensure compatibility. By utilizing slots instead of single sized screw holes, allows for a slight adjustment of the speaker when mounted. This becomes useful if you are mounting the speakers in an odd shaped factory speaker location. The integrated concealed crossover hides the crossover inside the basket, decreasing and simplifying installation time. Minimizing the time between taking the speakers out of the box to installing them in your vehicle, the Punch speakers feature an OEM Adapter plate system that allows full-range speaker to fit in certain openings. The adapter plate features Inchbreak-away Inch tabs that can be removed to fit all speaker sizes.

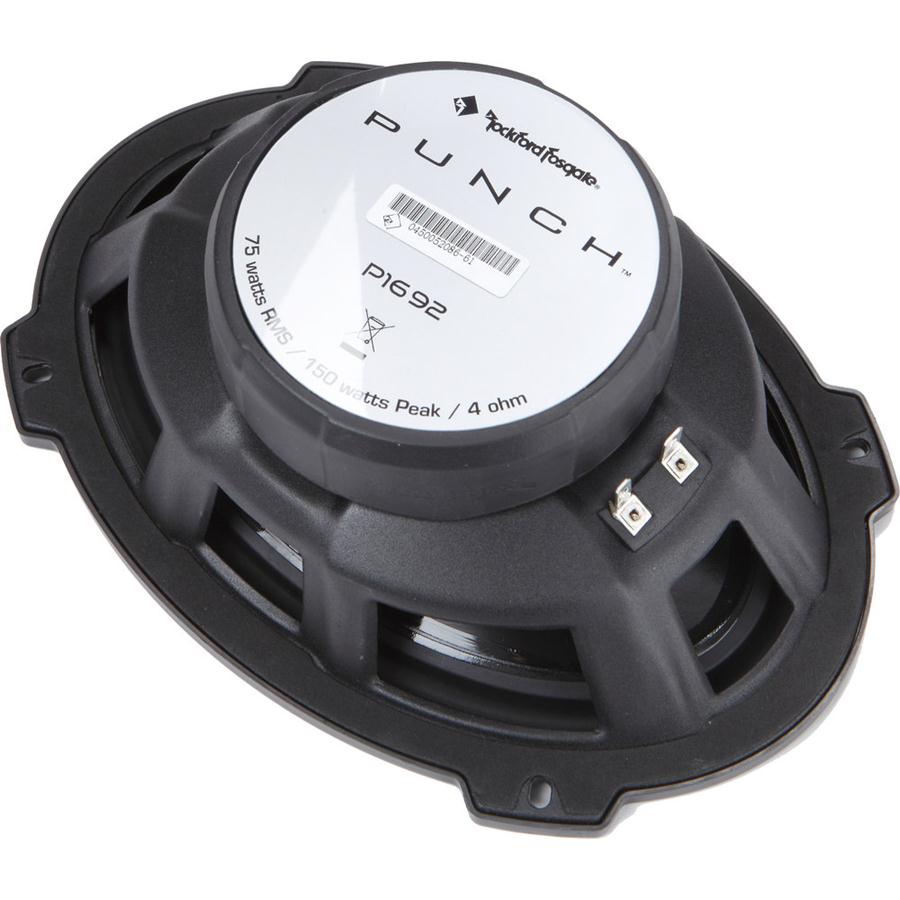

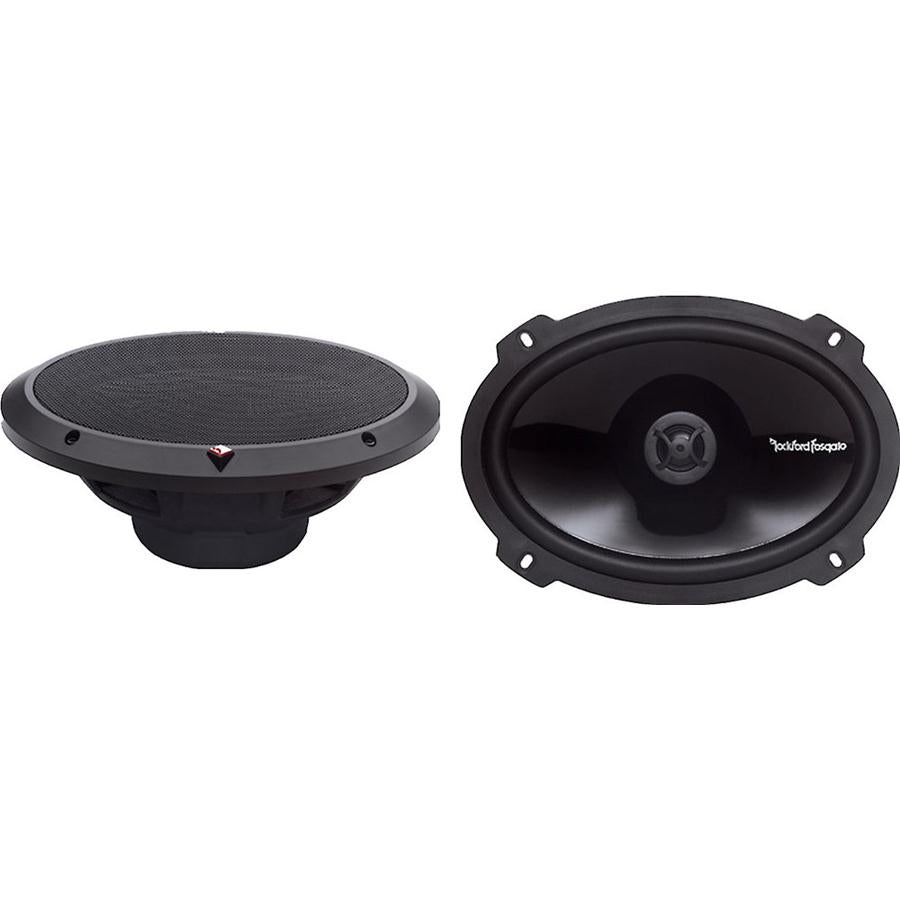

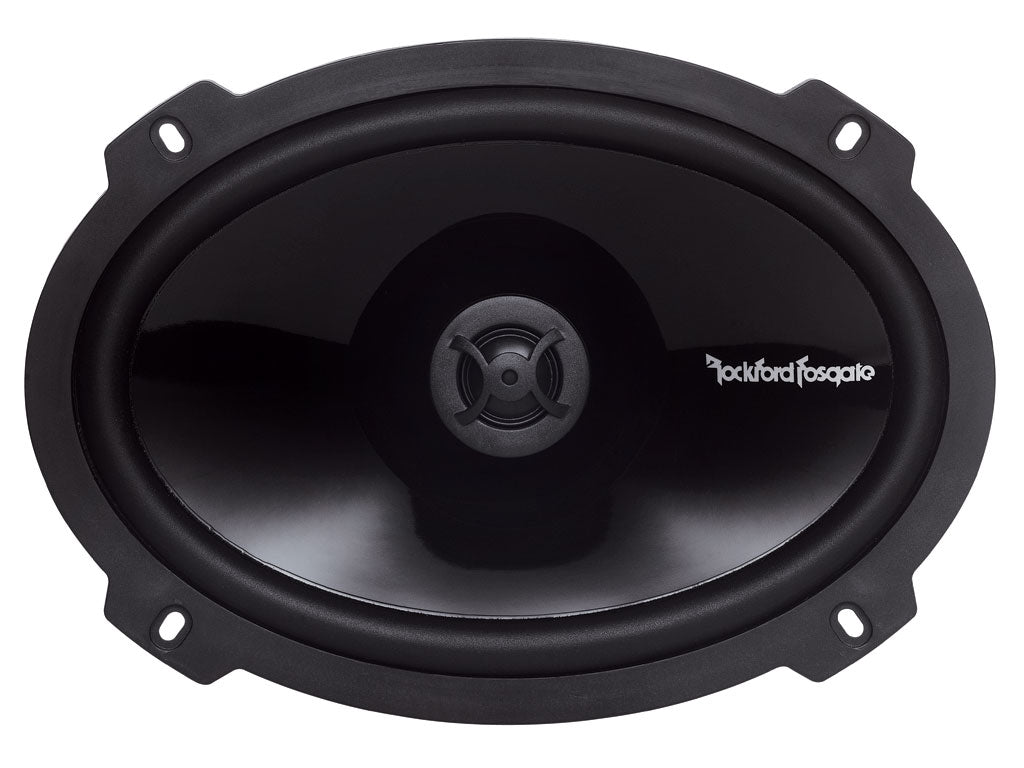

The Punch series speakers feature VAST (Vertical Attach Surround Technique) which increases a speaker’s effective radiating cone area without complicating installation. The design eliminates the large flat glue surface area which allows the surround to be shifted for increased cone area. With this, nominal efficiency and maximum output capabilities are improved. The P1692 is a 6 Inch x 9 Inch 2-Way speaker that has all the features mentioned above.
Features:
- 6 Inch x 9 Inch Punch Series 2-Way Car Speakers
- Power Handling:
- Peak: 300 watts per pair
- RMS: 150 watts per pair
- Injection molded mineral filled polypropylene cone
- Vertical Attach Surround Technique butyl Rubber surround
- 3/4 Inch Treated PEI dome tweeter
- StampCast frame structure
- 4 ohms impedance
- Includes grill and mounting hardware
- Top-mount depth: 3 Inch
Specifications:
- Speaker Size: 6 Inch x 9 Inch
- Design: 2-way
- Tweeter Design: Dome
- Tweeter Composition: Polyetherimide
- Woofer Composition: Mineral-Filled Polypropylene
- Woofer Surround: Butyl Rubber
- Peak Power Handling: 150 watts
- RMS Power Handling: 75 watts
- Sensitivity: 91 dB
- Frequency Response: 60 - 22,000 Hz
- Impedance (Per Voice Coil): 4 ohms
- Top-Mount Depth: 3 Inch
- Bottom-Mount Depth: 3-7/16 Inch
- Cutout Dimensions: 8-1/4 Inch x 5-5/8 Inch
- Speaker Grilles: Yes
